PRO · Woodworking PCD Saw

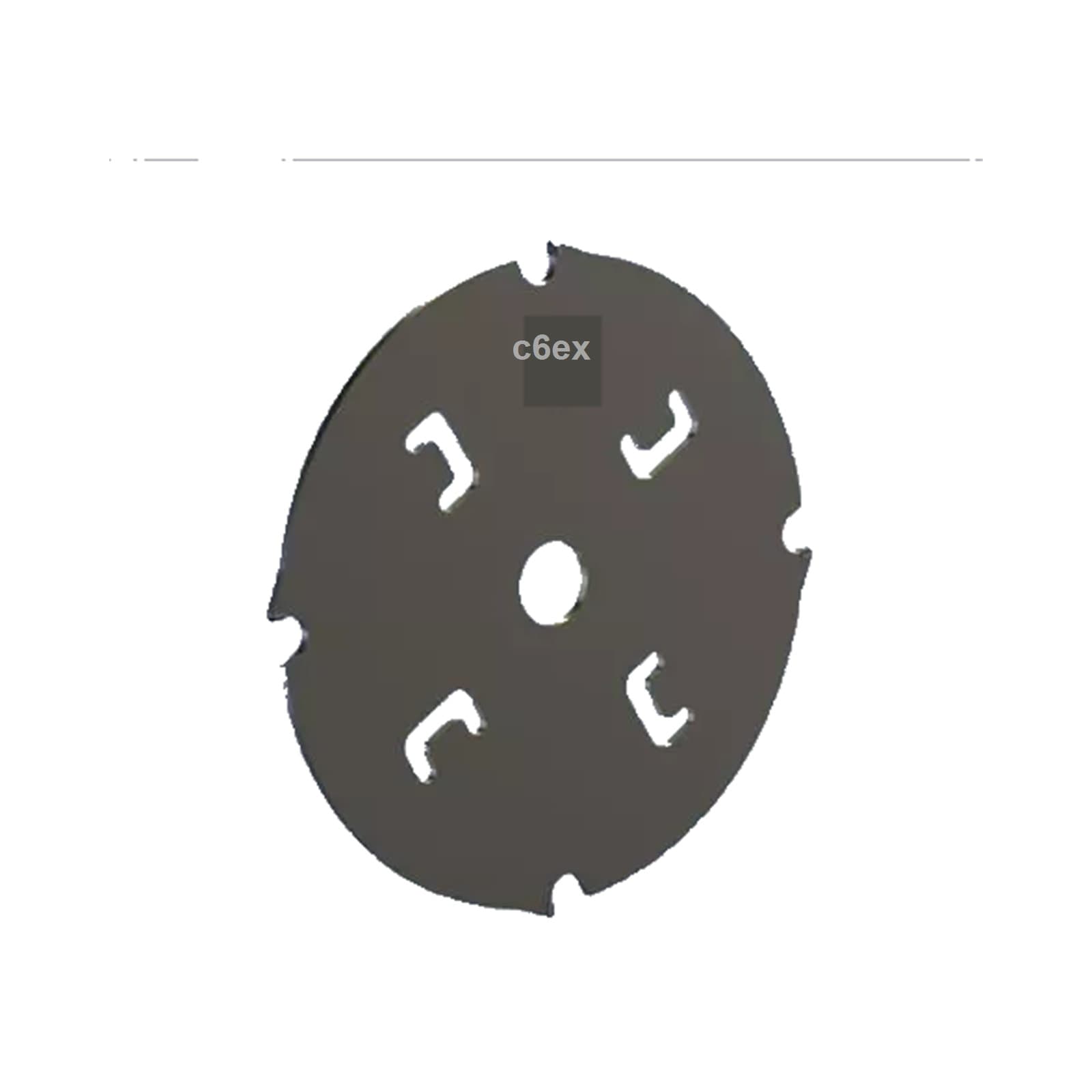

c6ex PRO Woodworking PCD Saw Blade for Portable Saws - Standard
Long PCD life, clean cut finish. For Portable Saws
- Material
- DP
Long PCD life, clean cut finish
For Portable Saws
Benchmarked vs Leitz/Leuco
Workpiece: Gypsum and cement boards.
Why this series
Key benefits
Long PCD life, clean cut finish
Long PCD life, clean cut finish
For Portable Saws
For Portable Saws
Benchmarked vs Leitz/Leuco
Benchmarked vs Leitz/Leuco
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | D mm | Cut Width mm | Bore mm | Z | Tooth Form | Hook SW° |
|---|---|---|---|---|---|---|
| C6EX-WPS-GN-0075 | 160 mm | 3.2 mm | 20 mm | 4 | P | 5 ° |
| C6EX-WPS-GN-0076 | 184 mm | 3.2 mm | 20 mm | 4 | P | 5 ° |
| C6EX-WPS-GN-0077 | 190 mm | 3.2 mm | 20 mm | 4 | P | 5 ° |
| C6EX-WPS-GN-0078 | 190 mm | 3.2 mm | 30 mm | 4 | P | 5 ° |
| C6EX-WPS-GN-0079 | 225 mm | 3.2 mm | 30 mm | 6 | P | 5 ° |
| C6EX-WPS-GN-0080 | 300 mm | 3.2 mm | 30 mm | 8 | P | 5 ° |
| C6EX-WPS-GN-0081 | 160 mm | 2.2 mm | 20 mm | 4 | FZ | 5 ° |
| C6EX-WPS-GN-0082 | 165 mm | 2.2 mm | 20 mm | 4 | FZ | 5 ° |
| C6EX-WPS-GN-0083 | 190 mm | 2.2 mm | 30 mm | 4 | FZ | 5 ° |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | DP |
|---|---|
| Workpiece materials | Gypsum and cement boards. |
| Operations | Sizing |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex PRO Woodworking PCD Saw Blade for Portable Saws - Standard with your material, parameters, and volume. No price listing; each series is quoted to your application.
