PRO · Woodworking PCD Saw

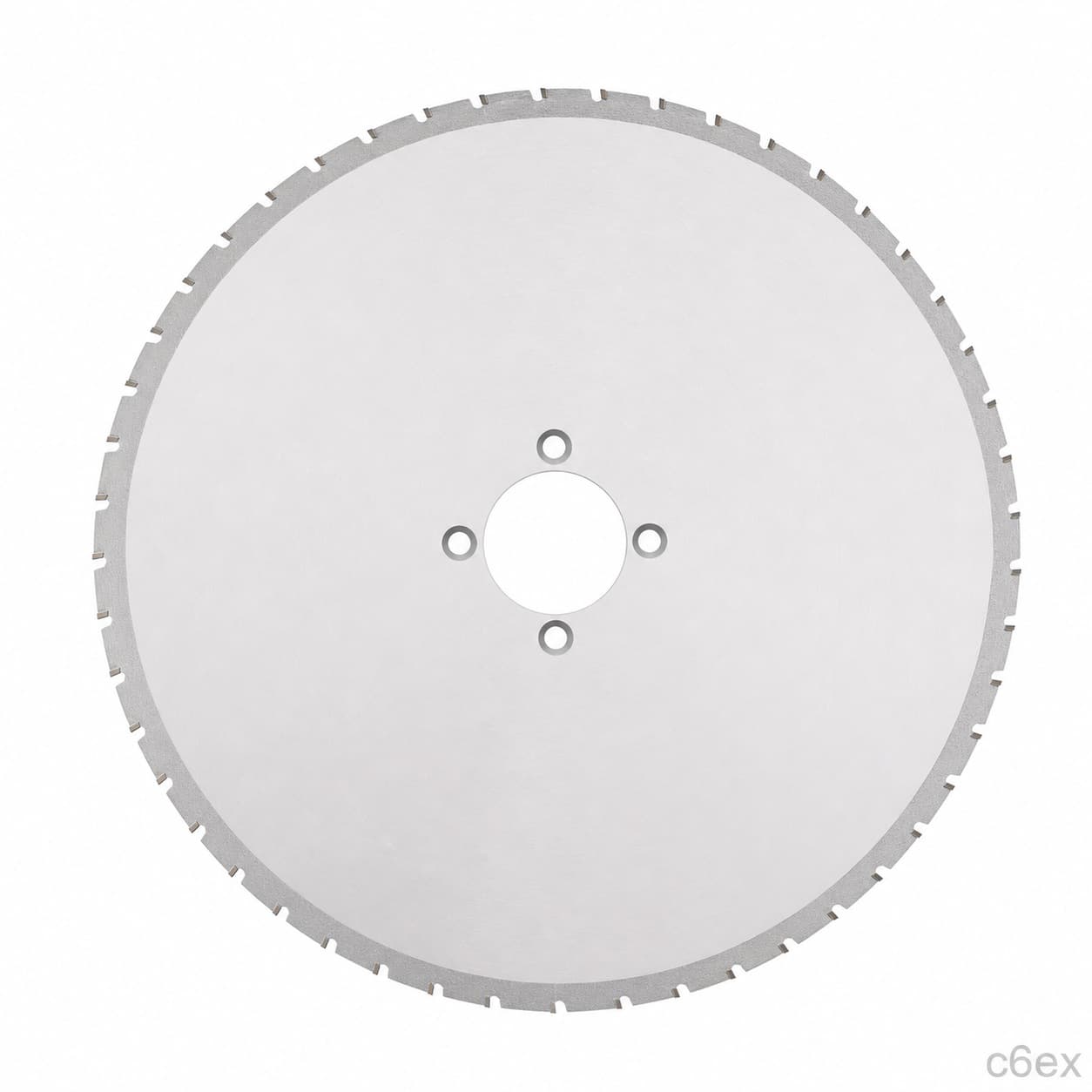

c6ex PRO Woodworking PCD Saw Blade for CNC - Standard
Long PCD life, clean cut finish. For CNC
- Material
- DP
Long PCD life, clean cut finish
For CNC
Benchmarked vs Leitz/Leuco
Workpiece: Chipboard and fibre materials paper and plastic coated, veneered, laminated veneer lumber (e.g. plywood, multiplex plywood), solid wood panels across grain and for mitre joints., Chipboard and fibre materials paper and plastic coated, veneered, laminated veneer lumber (e.g. plywood, multiplex plywood).
Why this series
Key benefits
Long PCD life, clean cut finish
Long PCD life, clean cut finish
For CNC
For CNC
Benchmarked vs Leitz/Leuco
Benchmarked vs Leitz/Leuco
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | D mm | Cut Width mm | Bore mm | Z | Tooth Form | Hook SW° |
|---|---|---|---|---|---|---|
| C6EX-WPS-GN-0062 | 160 mm | 2.5 mm | 20 mm | 30 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0063 | 180 mm | 2.5 mm | 30 mm | 35 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0064 | 180 mm | 2.5 mm | 40 mm | 35 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0065 | 200 mm | 2.5 mm | 30 mm | 40 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0066 | 220 mm | 2.5 mm | 30 mm | 45 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0067 | 220 mm | 2.5 mm | 40 mm | 45 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0068 | 240 mm | 2.5 mm | 30 mm | 50 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0069 | 240 mm | 2.5 mm | 40 mm | 50 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0070 | 250 mm | 2.5 mm | 30 mm | 50 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0071 | 280 mm | 2.5 mm | 30 mm | 55 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0072 | 303 mm | 3.2 mm | 30 mm | 60 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0073 | 350 mm | 3.2 mm | 30 mm | 70 | HZFA/WZFA | 10 ° |
| C6EX-WPS-GN-0074 | 100 mm | 4.0 mm | 20 mm | 12 | FZ | 10 ° |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | DP |
|---|---|
| Workpiece materials | Chipboard and fibre materials paper and plastic coated, veneered, laminated veneer lumber (e.g. plywood, multiplex plywood), solid wood panels across grain and for mitre joints., Chipboard and fibre materials paper and plastic coated, veneered, laminated veneer lumber (e.g. plywood, multiplex plywood). |
| Operations | CNC Machining, Grooving, Sizing, Solid Wood Sawing |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex PRO Woodworking PCD Saw Blade for CNC - Standard with your material, parameters, and volume. No price listing; each series is quoted to your application.
