Multi-tier · Sawing

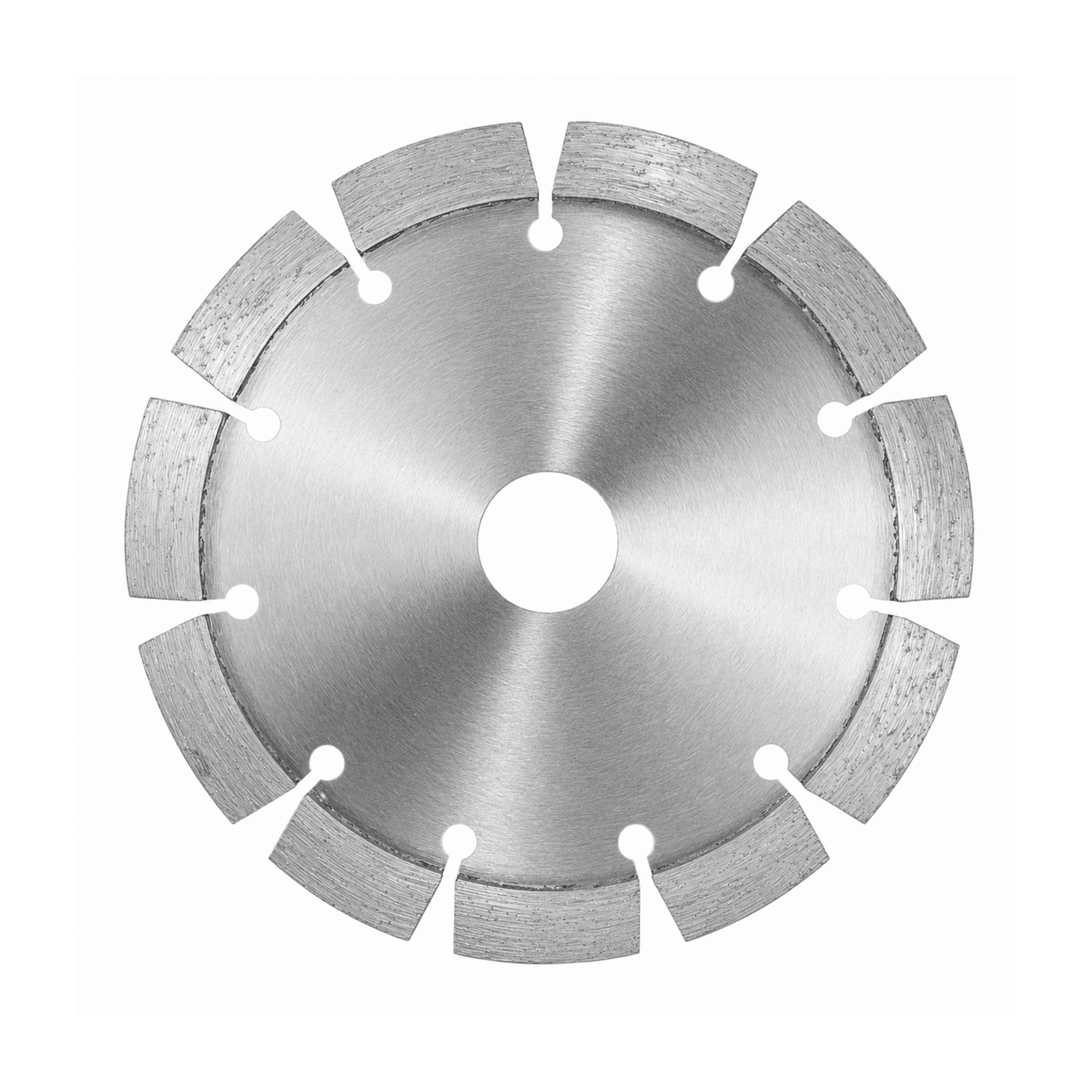

c6ex Saw Blade for Crack & Tuck Point Blades
PLUS-grade solution. Tuned for Crack & Tuck Point Blades
- Material
- Diamond
- Bond
- ["Laser Welded"]
PLUS-grade solution
Tuned for Crack & Tuck Point Blades
Multi-source domestic supply
Workpiece: Brick, Concrete, Masonry, Reinforced concrete
Why this series
Key benefits
PLUS-grade solution
PLUS-grade solution
Tuned for Crack & Tuck Point Blades
Tuned for Crack & Tuck Point Blades
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Type | Tier | Item No. | Diameter | Segment Height | Segment Width | Arbor |
|---|---|---|---|---|---|---|---|
| C6EX-SW-GN-0033 | Tuck Ponit Blade | PRO | CTPA11510 | 115mm | 10mm | 6.4mm | 22.23mm |
| C6EX-SW-GN-0034 | Tuck Ponit Blade | PRO | CTPB11510 | 115mm | 10mm | 9.6mm | 22.23mm |
| C6EX-SW-GN-0035 | Tuck Ponit Blade | PRO | CTPA12510 | 125mm | 10mm | 6.4mm | 22.23mm |
| C6EX-SW-GN-0036 | Tuck Ponit Blade | PRO | CTPB12510 | 125mm | 10mm | 9.6mm | 22.23mm |
| C6EX-SW-GN-0037 | Tuck Ponit Blade | PRO | CTPA18010 | 180mm | 10mm | 6.4mm | 22.23mm |
| C6EX-SW-GN-0038 | Tuck Ponit Blade | PRO | CTPB18010 | 180mm | 10mm | 9.6mm | 22.23mm |
| C6EX-SW-GN-0039 | Crack Chaser Blade | PLUS | CCCA11510 | 115mm | 10mm | 6.4mm | 22.23mm |
| C6EX-SW-GN-0040 | Crack Chaser Blade | PLUS | CCCB11510 | 115mm | 10mm | 9.5mm | 22.23mm |
| C6EX-SW-GN-0041 | Crack Chaser Blade | PLUS | CCCA12510 | 125mm | 10mm | 6.4mm | 22.23mm |
| C6EX-SW-GN-0042 | Crack Chaser Blade | PLUS | CCCB12510 | 125mm | 10mm | 9.5mm | 22.23mm |
| C6EX-SW-GN-0043 | Crack Chaser Blade | PLUS | CCCA18010 | 180mm | 10mm | 6.4mm | 22.23mm |
| C6EX-SW-GN-0044 | Crack Chaser Blade | PLUS | CCCB18010 | 180mm | 10mm | 9.5mm | 22.23mm |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond |
|---|---|
| Bond type | ["Laser Welded"] |
| Workpiece materials | Brick, Concrete, Masonry, Reinforced concrete |
| Operations | Sawing |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex Saw Blade for Crack & Tuck Point Blades with your material, parameters, and volume. No price listing; each series is quoted to your application.
