C6c6exPrecision tooling, lab-selected and validatedRequest a Quote

Multi-tier · Sawing

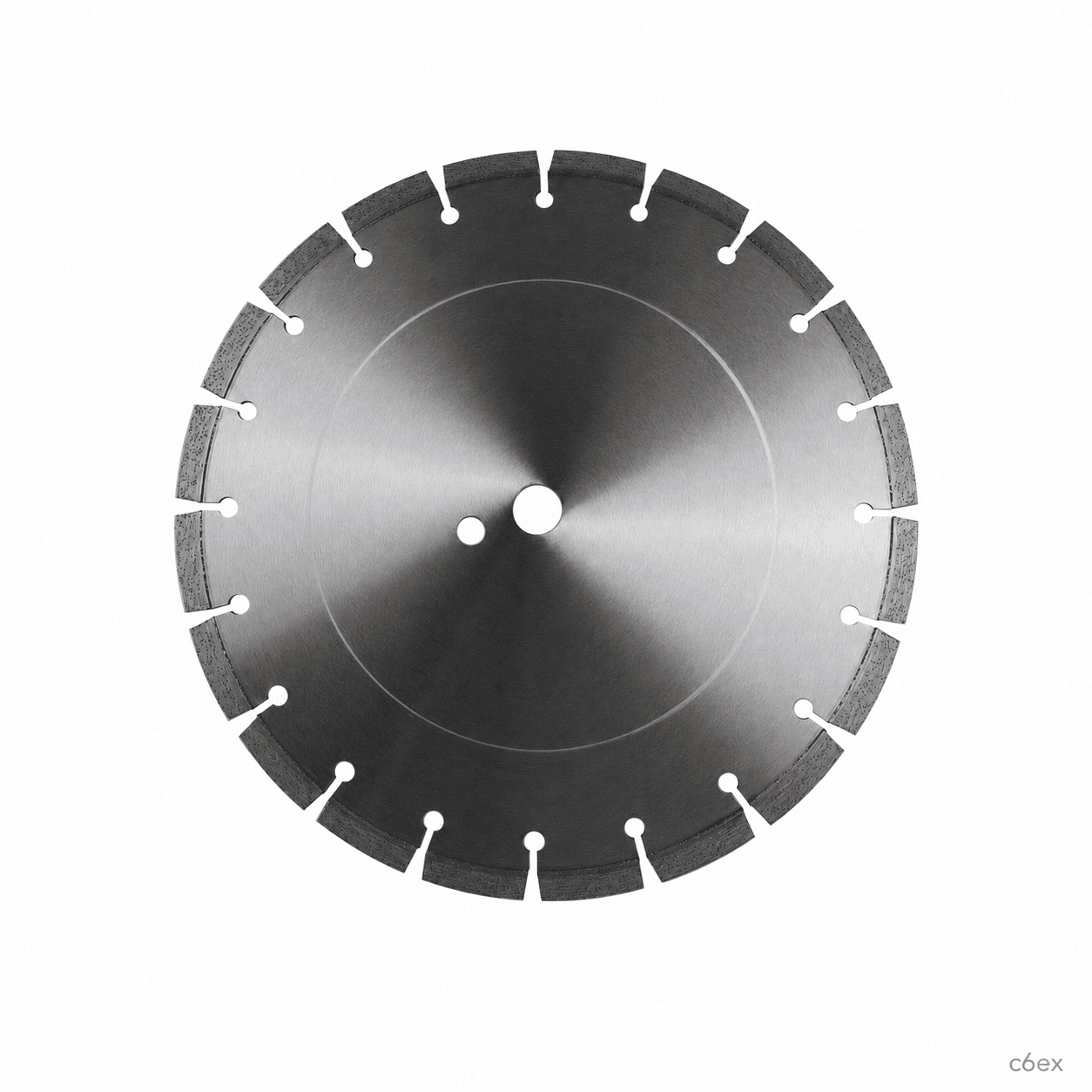

c6ex Saw Blade for Concrete Blades

PLUS-grade solution. Tuned for Concrete Blades

Request a QuoteTalk to an Engineer
c6ex Saw Blade for Concrete Blades
Material
Diamond
Bond
["Hot Pressed","Laser Welded","Sintered"]

PLUS-grade solution

Tuned for Concrete Blades

Multi-source domestic supply

Workpiece: Asphalt, Brick, Concrete, Granite, Marble, Masonry, Reinforced concrete, Slate, Tile

Why this series

Key benefits

PLUS-grade solution

PLUS-grade solution

Tuned for Concrete Blades

Tuned for Concrete Blades

Multi-source domestic supply

Multi-source domestic supply

SKU table

Series specifications

Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.

c6ex SKUTypeTierItem No.DiameterSegment HeightSegment WidthArbor
C6EX-SW-CO-0001General Purpose Cutting BladePROCGLP105105mm10mm2.0mm22.23/20mm
C6EX-SW-CO-0002General Purpose Cutting BladePROCGLP115115mm10mm2.0mm22.23mm
C6EX-SW-CO-0003General Purpose Cutting BladePROCGLP125125mm12mm2.3mm22.23mm
C6EX-SW-CO-0004General Purpose Cutting BladePROCGLP150150mm12mm2.2mm22.23mm
C6EX-SW-CO-0005General Purpose Cutting BladePROCGLP180180mm12mm2.4mm22.23mm
C6EX-SW-CO-0006General Purpose Cutting BladePROCGLP230230mm12mm2.6mm22.23mm
C6EX-SW-CO-0007General Purpose Cutting BladePROCGLP300300mm12mm3.0mm25.4/20mm
C6EX-SW-CO-0008General Purpose Cutting BladePROCGLP350350mm12mm3.2mm25.4mm
C6EX-SW-CO-0009General Purpose Cutting BladePROCGLP400400mm12mm3.2mm25.4mm
C6EX-SW-CO-0010Concrete Cutting BladeBASECCSS10510105mm10mm2.0mm22.23mm
C6EX-SW-CO-0011Concrete Cutting BladeBASECCSS11510115mm10mm2.0mm22.23mm
C6EX-SW-CO-0012Concrete Cutting BladeBASECCSS12510125mm10mm2.0mm22.23mm
C6EX-SW-CO-0013Concrete Cutting BladeBASECCSS15010150mm10mm2.0mm22.23mm
C6EX-SW-CO-0014Concrete Cutting BladeBASECCSS18010180mm10mm2.3mm22.23mm
C6EX-SW-CO-0015Concrete Cutting BladeBASECCSS23010230mm10mm2.5mm20/25.4mm
C6EX-SW-CO-0016Concrete Cutting BladeBASECCSS30010300mm10mm3.2mm25.4mm
C6EX-SW-CO-0017Concrete Cutting BladeBASECCSS35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0018Concrete Cutting BladeBASECCSS40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0019Concrete Cutting BladePROCCLAT30010300mm10mm3.2mm20/25.4mm
C6EX-SW-CO-0020Concrete Cutting BladePROCCLAT35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0021Concrete Cutting BladePROCCLAT40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0022Concrete Cutting BladePROCCLAT45010450mm10mm3.6mm25.4mm
C6EX-SW-CO-0023Concrete Cutting BladePROCCLAT50010500mm10mm3.6mm25.4mm
C6EX-SW-CO-0024Concrete Cutting BladePROCCLAT55010550mm10mm3.6mm25.4mm
C6EX-SW-CO-0025Concrete Cutting BladePROCCLAT60010600mm10mm4.5mm25.4mm
C6EX-SW-CO-0026Concrete Cutting BladePROCCLP30010300mm10mm3.2mm20/25.4mm
C6EX-SW-CO-0027Concrete Cutting BladePROCCLP35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0028Concrete Cutting BladePROCCLP40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0029Concrete Cutting BladePROCCLP45010450mm10mm3.6mm25.4mm
C6EX-SW-CO-0030Concrete Cutting BladePROCCLP50010500mm10mm3.6mm25.4mm
C6EX-SW-CO-0031Concrete Cutting BladePROCCLP55010550mm10mm3.6mm25.4mm
C6EX-SW-CO-0032Concrete Cutting BladePROCCLP60010600mm10mm4.5mm25.4mm
C6EX-SW-CO-0033Concrete Cutting BladePROCCLE30010300mm10mm3.2mm20/25.4mm
C6EX-SW-CO-0034Concrete Cutting BladePROCCLE35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0035Concrete Cutting BladePROCCLE40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0036Concrete Cutting BladePROCCLE45010450mm10mm3.6mm25.4mm
C6EX-SW-CO-0037Concrete Cutting BladePROCCLE50010500mm10mm3.6mm25.4mm
C6EX-SW-CO-0038Concrete Cutting BladePROCCLE55010550mm10mm3.6mm25.4mm
C6EX-SW-CO-0039Concrete Cutting BladePROCCLE60010600mm10mm4.5mm25.4mm
C6EX-SW-CO-0040General Purpose Cutting BladeBASECGST10510105mm10mm2.0mm22.23/20mm
C6EX-SW-CO-0041General Purpose Cutting BladeBASECGST11510115mm10mm2.0mm22.23mm
C6EX-SW-CO-0042General Purpose Cutting BladeBASECGST12510125mm10mm2.0mm22.23mm
C6EX-SW-CO-0043General Purpose Cutting BladeBASECGST15010150mm10mm2.2mm22.23mm
C6EX-SW-CO-0044General Purpose Cutting BladeBASECGST18010180mm10mm2.4mm22.23mm
C6EX-SW-CO-0045General Purpose Cutting BladeBASECGST23010230mm10mm2.6mm22.23mm
C6EX-SW-CO-0046General Purpose Cutting BladeBASECGST30010300mm10mm3.0mm25.4/20mm
C6EX-SW-CO-0047General Purpose Cutting BladeBASECGST35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0048General Purpose Cutting BladeBASECGST40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0049General Purpose Cutting BladeBASECGSG10510105mm10mm2.0mm22.23/20mm
C6EX-SW-CO-0050General Purpose Cutting BladeBASECGSG11510115mm10mm2.0mm22.23mm
C6EX-SW-CO-0051General Purpose Cutting BladeBASECGSG12510125mm10mm2.0mm22.23mm
C6EX-SW-CO-0052General Purpose Cutting BladeBASECGSG15010150mm10mm2.2mm22.23mm
C6EX-SW-CO-0053General Purpose Cutting BladeBASECGSG18010180mm10mm2.4mm22.23mm
C6EX-SW-CO-0054General Purpose Cutting BladeBASECGSG23010230mm10mm2.6mm22.23mm
C6EX-SW-CO-0055General Purpose Cutting BladeBASECGSG30010300mm10mm3.0mm25.4/20mm
C6EX-SW-CO-0056General Purpose Cutting BladeBASECGSG35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0057General Purpose Cutting BladeBASECGSG40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0058Concrete Cutting BladePROCCLW30010300mm10mm3.2mm20/25.4mm
C6EX-SW-CO-0059Concrete Cutting BladePROCCLW35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0060Concrete Cutting BladePROCCLW40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0061Concrete Cutting BladePROCCLW45010450mm10mm3.6mm25.4mm
C6EX-SW-CO-0062Concrete Cutting BladePROCCLW50010500mm10mm3.6mm25.4mm
C6EX-SW-CO-0063Concrete Cutting BladePROCCLC30010300mm10mm3.2mm20/25.4mm
C6EX-SW-CO-0064Concrete Cutting BladePROCCLC35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0065Concrete Cutting BladePROCCLC40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0066Concrete Cutting BladePROCCLC45010450mm10mm3.6mm25.4mm
C6EX-SW-CO-0067Concrete Cutting BladePROCCLC50010500mm10mm3.6mm25.4mm
C6EX-SW-CO-0068General Purpose Cutting BladePROCGSG10508105mm8mm2.0mm22.23mm
C6EX-SW-CO-0069General Purpose Cutting BladePROCGSG11508115mm8mm2.0mm22.23mm
C6EX-SW-CO-0070General Purpose Cutting BladePROCGSG12508125mm8mm2.0mm22.23mm
C6EX-SW-CO-0071General Purpose Cutting BladePROCGSG15008150mm8mm2.0mm22.23mm
C6EX-SW-CO-0072General Purpose Cutting BladePROCGSG18008180mm8mm2.3mm22.23mm
C6EX-SW-CO-0073General Purpose Cutting BladePROCGSG23008230mm8mm2.3mm22.23mm
C6EX-SW-CO-0074General Purpose Cutting BladePROCGSG30010300mm10mm2.8mm20/25.4mm
C6EX-SW-CO-0075General Purpose Cutting BladePROCGSG35010350mm10mm3.0mm25.4mm
C6EX-SW-CO-0076General Purpose Cutting BladePROCGSG40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0077General Purpose Cutting BladePROCGLT10510105mm10mm2.0mm22.23/20mm
C6EX-SW-CO-0078General Purpose Cutting BladePROCGLT11510115mm10mm2.0mm22.23mm
C6EX-SW-CO-0079General Purpose Cutting BladePROCGLT12510125mm10mm2.0mm22.23mm
C6EX-SW-CO-0080General Purpose Cutting BladePROCGLT15010150mm10mm2.2mm22.23mm
C6EX-SW-CO-0081General Purpose Cutting BladePROCGLT18010180mm10mm2.4mm22.23mm
C6EX-SW-CO-0082General Purpose Cutting BladePROCGLT23010230mm10mm2.6mm22.23mm
C6EX-SW-CO-0083General Purpose Cutting BladePROCGLT30010300mm10mm3.0mm25.4/20mm
C6EX-SW-CO-0084General Purpose Cutting BladePROCGLT35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0085General Purpose Cutting BladePROCGLT40010400mm10mm3.2mm25.4mm
C6EX-SW-CO-0086General Purpose Cutting BladePROCGLB10510105mm10mm2.0mm22.23mm
C6EX-SW-CO-0087General Purpose Cutting BladePROCGLB11510115mm10mm2.0mm22.23mm
C6EX-SW-CO-0088General Purpose Cutting BladePROCGLB12510125mm10mm2.0mm22.23mm
C6EX-SW-CO-0089General Purpose Cutting BladePROCGLB15010150mm10mm2.0mm22.23mm
C6EX-SW-CO-0090General Purpose Cutting BladePROCGLB18010180mm10mm2.3mm22.23mm
C6EX-SW-CO-0091General Purpose Cutting BladePROCGLB23010230mm10mm2.5mm22.23mm
C6EX-SW-CO-0092General Purpose Cutting BladePROCGLB30010300mm10mm3.2mm20/25.4mm
C6EX-SW-CO-0093General Purpose Cutting BladePROCGLB35010350mm10mm3.2mm25.4mm
C6EX-SW-CO-0094General Purpose Cutting BladePROCGLB40010400mm10mm3.2mm25.4mm

Series specs

Specification snapshot

Material, bond, and process fit for selection and sampling.

MaterialDiamond
Bond type["Hot Pressed","Laser Welded","Sintered"]
Workpiece materialsAsphalt, Brick, Concrete, Granite, Marble, Masonry, Reinforced concrete, Slate, Tile
OperationsSawing

Application fit

Primary application

The primary application this series is engineered for.

Application

Concrete Blades

Quote context

Send your workpiece, machine, and cycle target — we engineer the tool.

Route an inquiry for c6ex Saw Blade for Concrete Blades with your material, parameters, and volume. No price listing; each series is quoted to your application.
