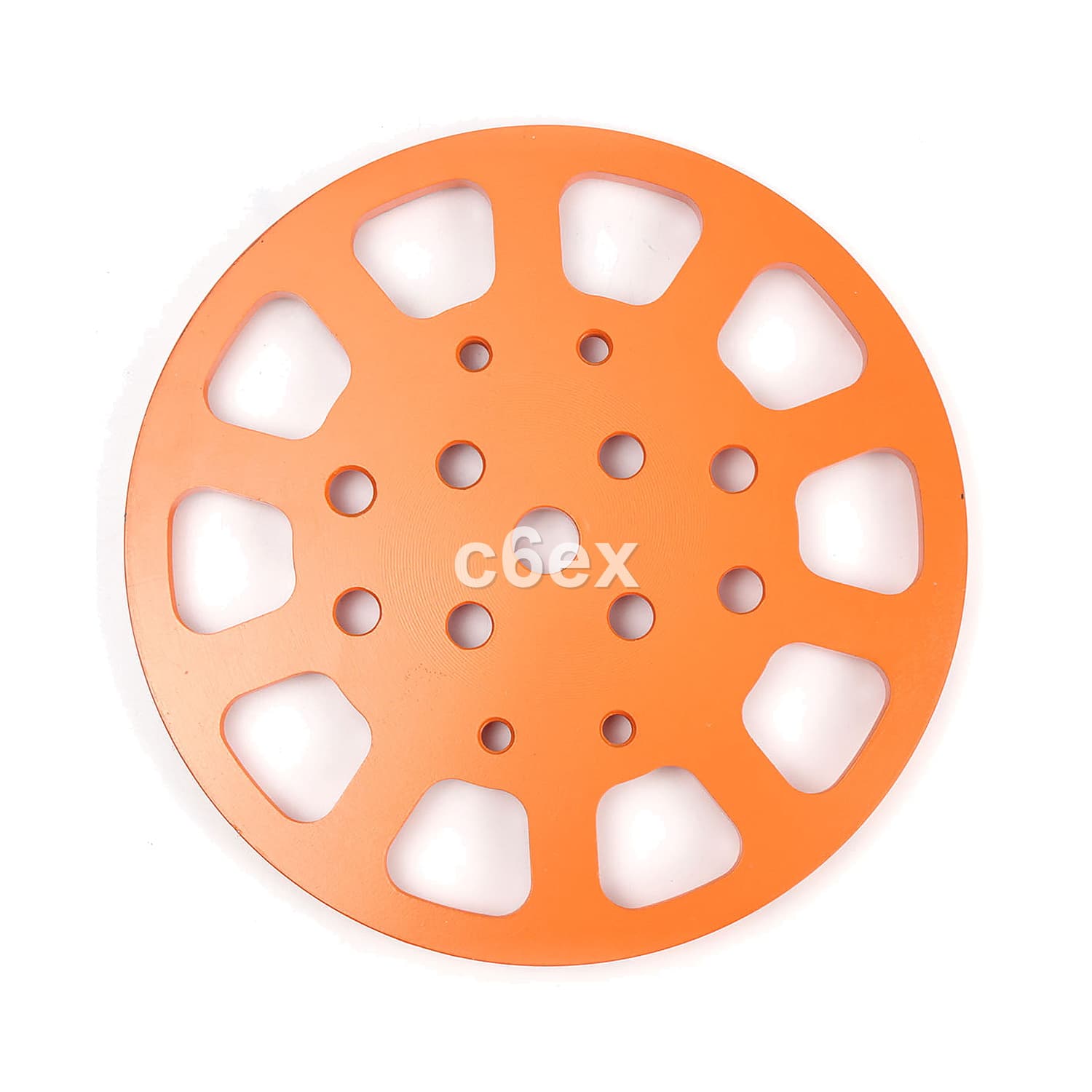

c6ex Grinding Wheel for Grinding Plates - Diamond Grinding Plate
PLUS-grade solution. Tuned for Grinding Plates
- Material
- Diamond, PCD
- Bond
- ["Brazed","Silver Brazed"]
PLUS-grade solution
Tuned for Grinding Plates
Multi-source domestic supply
Workpiece: Coating, Concrete, Epoxy, Glue, Masonry, Paint
Why this series
Key benefits
PLUS-grade solution
PLUS-grade solution
Tuned for Grinding Plates
Tuned for Grinding Plates
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Tier | Item No. | Diameter | Segment No. | Segment Thickness | Diamond Grit |
|---|---|---|---|---|---|---|
| C6EX-GR-GN-0113 | PLUS | CGDPA | 250mm | 12 | 1/4PCD | PCD |
| C6EX-GR-GN-0114 | PRO | CGDD250 | 250mm | 12 | 10mm | Coarse 35/40 |
| C6EX-GR-GN-0115 | PRO | CGDD250 | 250mm | 18 | 10mm | Coarse 35/40 |
| C6EX-GR-GN-0116 | PRO | CGDB250 | 250mm | 10 | 10mm | Coarse 35/40 |
| C6EX-GR-GN-0117 | PRO | CGDR | 250mm | 20 | 10mm | Coarse 35/40 |
| C6EX-GR-GN-0118 | PRO | CGDKB250 | 250mm | 20 | 10mm | Coarse 35/40 |
| C6EX-GR-GN-0119 | PRO | CGDKA250 | 250mm | 20 | 10mm | Coarse 35/40 |
| C6EX-GR-GN-0120 | PRO | CGDB250 | 250mm | 20 | 10mm | Coarse 35/40 |
| C6EX-GR-GN-0121 | PLUS | CGDPB | 250mm | 16 | 1/4PCD | PCD |
| C6EX-GR-GN-0122 | PLUS | CGDC | 250mm | 20 | 10mm | Coarse 35/40 |
| C6EX-GR-GN-0123 | PRO | CGDA | 250mm | 20/10 | 10mm | Coarse 35/40 |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond, PCD |
|---|---|
| Bond type | ["Brazed","Silver Brazed"] |
| Grit | ["Coarse 35/40","Fine 100/120","Medium 50/60"] |
| Workpiece materials | Coating, Concrete, Epoxy, Glue, Masonry, Paint |
| Operations | Grinding |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex Grinding Wheel for Grinding Plates - Diamond Grinding Plate with your material, parameters, and volume. No price listing; each series is quoted to your application.
