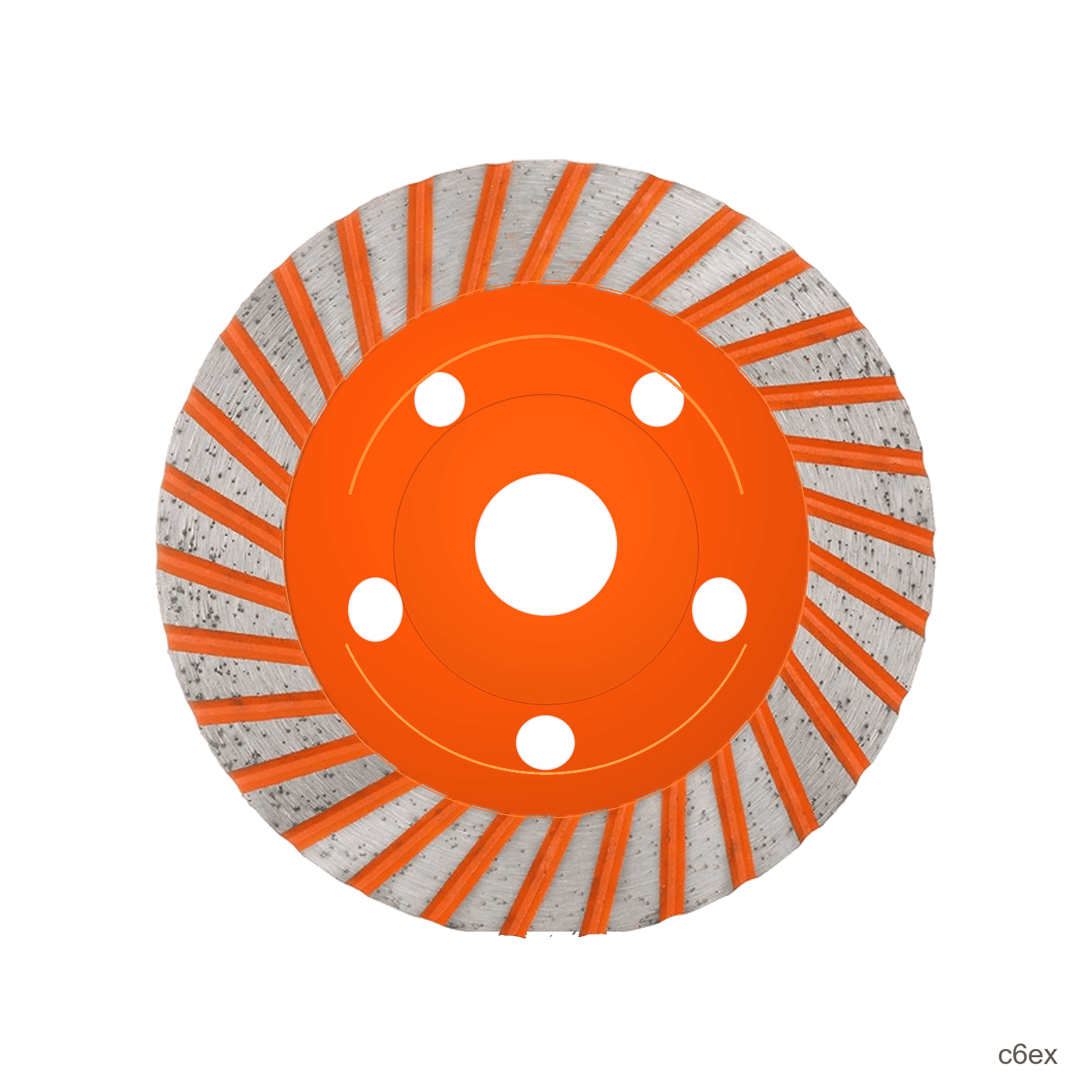

c6ex Grinding Wheel for Diamond Cup Wheels

PLUS-grade solution. Tuned for Diamond Cup Wheels

Request a QuoteTalk to an Engineer
c6ex Grinding Wheel for Diamond Cup Wheels
Material
Diamond
Bond
["Brazed","Hot Pressed","Silver Brazed","Sintered"]

PLUS-grade solution

Tuned for Diamond Cup Wheels

Multi-source domestic supply

Workpiece: Brick, Concrete, Granite, Marble, Masonry, Natural stone, Terrazo, Tile

Why this series

Key benefits

PLUS-grade solution

PLUS-grade solution

Tuned for Diamond Cup Wheels

Tuned for Diamond Cup Wheels

Multi-source domestic supply

Multi-source domestic supply

SKU table

Series specifications

Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.

c6ex SKUTypeTierItem No.DiameterSegment No.Segment ThicknessArbor
C6EX-GR-GN-0002Grinding Cup WheelPROCGWX105105mm75.5mm22.23mm
C6EX-GR-GN-0003Grinding Cup WheelPROCGWX115115mm85.5mm22.23mm
C6EX-GR-GN-0004Grinding Cup WheelPROCGWX125125mm105.5mm22.23mm
C6EX-GR-GN-0005Grinding Cup WheelPROCGWX180180mm145.5mm22.23mm
C6EX-GR-GN-0006Grinding Cup WheelPROCGWT10505105mm85.5mm22.23mm
C6EX-GR-GN-0007Grinding Cup WheelPROCGWT11505115mm95.5mm22.23mm
C6EX-GR-GN-0008Grinding Cup WheelPROCGWT12505125mm105.5mm22.23mm
C6EX-GR-GN-0009Grinding Cup WheelPROCGWT13008130mm108mm22.23mm
C6EX-GR-GN-0010Grinding Cup WheelPROCGWT15005150mm115.5mm22.23mm
C6EX-GR-GN-0011Grinding Cup WheelPROCGWT18005180mm125.5mm22.23mm
C6EX-GR-GN-0012Grinding Cup WheelPROCGWJ17510175mm3/6/8/910mm22.23mm
C6EX-GR-GN-0013Grinding Cup WheelPROCGWJ25010250mm3/6/8/1010mm22.23mm
C6EX-GR-GN-0014Grinding Cup WheelBASECGWTS10005100mm85.0mm20mm
C6EX-GR-GN-0015Grinding Cup WheelBASECGWTS11505115mm95.0mm22.23mm
C6EX-GR-GN-0016Grinding Cup WheelBASECGWTS12505125mm105.0mm22.23mm
C6EX-GR-GN-0017Grinding Cup WheelBASECGWTS15005150mm125.0mm22.23mm
C6EX-GR-GN-0018Grinding Cup WheelBASECGWTS18005180mm125.0mm22.23mm
C6EX-GR-GN-0019Grinding Cup WheelBASECGWSS10005100mm85.0mm20mm
C6EX-GR-GN-0020Grinding Cup WheelBASECGWSS11505115mm95.0mm22.23mm
C6EX-GR-GN-0021Grinding Cup WheelBASECGWSS12505125mm105.0mm22.23mm
C6EX-GR-GN-0022Grinding Cup WheelBASECGWSS15005150mm125.0mm22.23mm
C6EX-GR-GN-0023Grinding Cup WheelBASECGWSS18005180mm125.0mm22.23mm
C6EX-GR-GN-0024Single Row Cup WheelBASECGWSS10005100mm85.57/8",5/8"-11,M14
C6EX-GR-GN-0025Single Row Cup WheelBASECGWSS11505115mm95.57/8",5/8"-11,M14
C6EX-GR-GN-0026Single Row Cup WheelBASECGWSS12505125mm105.57/8",5/8"-11,M14
C6EX-GR-GN-0027Single Row Cup WheelBASECGWSS15005150mm125.57/8",5/8"-11,M14
C6EX-GR-GN-0028Single Row Cup WheelBASECGWSS18005180mm125.57/8",5/8"-11,M14
C6EX-GR-GN-0029Grinding Cup WheelPLUSCGWC10505105mm95.5mm22.23mm,5/8"-11
C6EX-GR-GN-0030Grinding Cup WheelPLUSCGWC11505115mm95.5mm22.23mm,5/8"-11
C6EX-GR-GN-0031Grinding Cup WheelPLUSCGWC12505125mm95.5mm22.23mm,5/8"-11
C6EX-GR-GN-0032Grinding Cup WheelPLUSCGWC15005150mm125.5mm19mm,5/8"-11
C6EX-GR-GN-0033Grinding Cup WheelPLUSCGWC18005180mm125.5mm22.23mm,5/8"-11
C6EX-GR-GN-0034Grinding Cup WheelPROCGWF10505105mm55.5mm5/8"-11,22.23mm
C6EX-GR-GN-0035Grinding Cup WheelPROCGWF11505115mm55.5mm5/8"-11,22.23mm
C6EX-GR-GN-0036Grinding Cup WheelPROCGWF12505125mm75.5mm5/8"-11,22.23mm
C6EX-GR-GN-0037Grinding Cup WheelPROCGWF15005150mm75.5mm5/8"-11,22.23mm
C6EX-GR-GN-0038Grinding Cup WheelPROCGWF18005180mm75.5mm5/8"-11,22.23mm
C6EX-GR-GN-0039Grinding Cup WheelPROCGWD10005100mm135.5mm7/8",5/8"-11,M14
C6EX-GR-GN-0040Grinding Cup WheelPROCGWD11505115mm165.5mm7/8",5/8"-11,M14
C6EX-GR-GN-0041Grinding Cup WheelPROCGWD12505125mm185.5mm7/8",5/8"-11,M14
C6EX-GR-GN-0042Grinding Cup WheelPROCGWD15005150mm195.5mm7/8",5/8"-11,M14
C6EX-GR-GN-0043Grinding Cup WheelPROCGWD18005180mm225.5mm7/8",5/8"-11,M14
C6EX-GR-GN-0044Grinding Cup WheelPROCGWT10505105mm85.5mm22.23mm, M14
C6EX-GR-GN-0045Grinding Cup WheelPROCGWT11505115mm95.5mm22.23mm, M14
C6EX-GR-GN-0046Grinding Cup WheelPROCGWT12505125mm105.5mm22.23mm, M14
C6EX-GR-GN-0047Grinding Cup WheelPROCGWT13008130mm108mm22.23mm, M14
C6EX-GR-GN-0048Grinding Cup WheelPROCGWT15005150mm115.5mm22.23mm, M14
C6EX-GR-GN-0049Grinding Cup WheelPROCGWT18005180mm125.5mm22.23mm, M14
C6EX-GR-GN-0050Grinding Cup WheelPLUSCGWS10005100mm85.5mm7/8",5/8"-11, M14
C6EX-GR-GN-0051Grinding Cup WheelPLUSCGWS11505115mm95.5mm7/8",5/8"-11, M14
C6EX-GR-GN-0052Grinding Cup WheelPLUSCGWS12505125mm105.5mm7/8",5/8"-11, M14
C6EX-GR-GN-0053Grinding Cup WheelPLUSCGWS15005150mm125.5mm7/8",5/8"-11, M14
C6EX-GR-GN-0054Grinding Cup WheelPLUSCGWS18005180mm125.5mm7/8",5/8"-11, M14
C6EX-GR-GN-0055Grinding Cup WheelPROCGWD10505100mm135.0/5.5mm22.23mm,5/8"-11
C6EX-GR-GN-0056Grinding Cup WheelPROCGWD11505115mm165.0/5.5mm22.23mm,5/8"-11
C6EX-GR-GN-0057Grinding Cup WheelPROCGWD12505125mm185.0/5.5mm22.23mm,5/8"-11
C6EX-GR-GN-0058Grinding Cup WheelPROCGWD15005150mm195.0/5.5mm22.23mm,5/8"-11
C6EX-GR-GN-0059Grinding Cup WheelPROCGWD18005180mm225.0/5.5mm22.23mm,5/8"-11

Series specs

Specification snapshot

Material, bond, and process fit for selection and sampling.

MaterialDiamond
Bond type["Brazed","Hot Pressed","Silver Brazed","Sintered"]
Workpiece materialsBrick, Concrete, Granite, Marble, Masonry, Natural stone, Terrazo, Tile
OperationsGrinding

Application fit

Primary application

The primary application this series is engineered for.

Application

Diamond Cup Wheels

Quote context

Send your workpiece, machine, and cycle target — we engineer the tool.

Route an inquiry for c6ex Grinding Wheel for Diamond Cup Wheels with your material, parameters, and volume. No price listing; each series is quoted to your application.
