PRO · Drilling

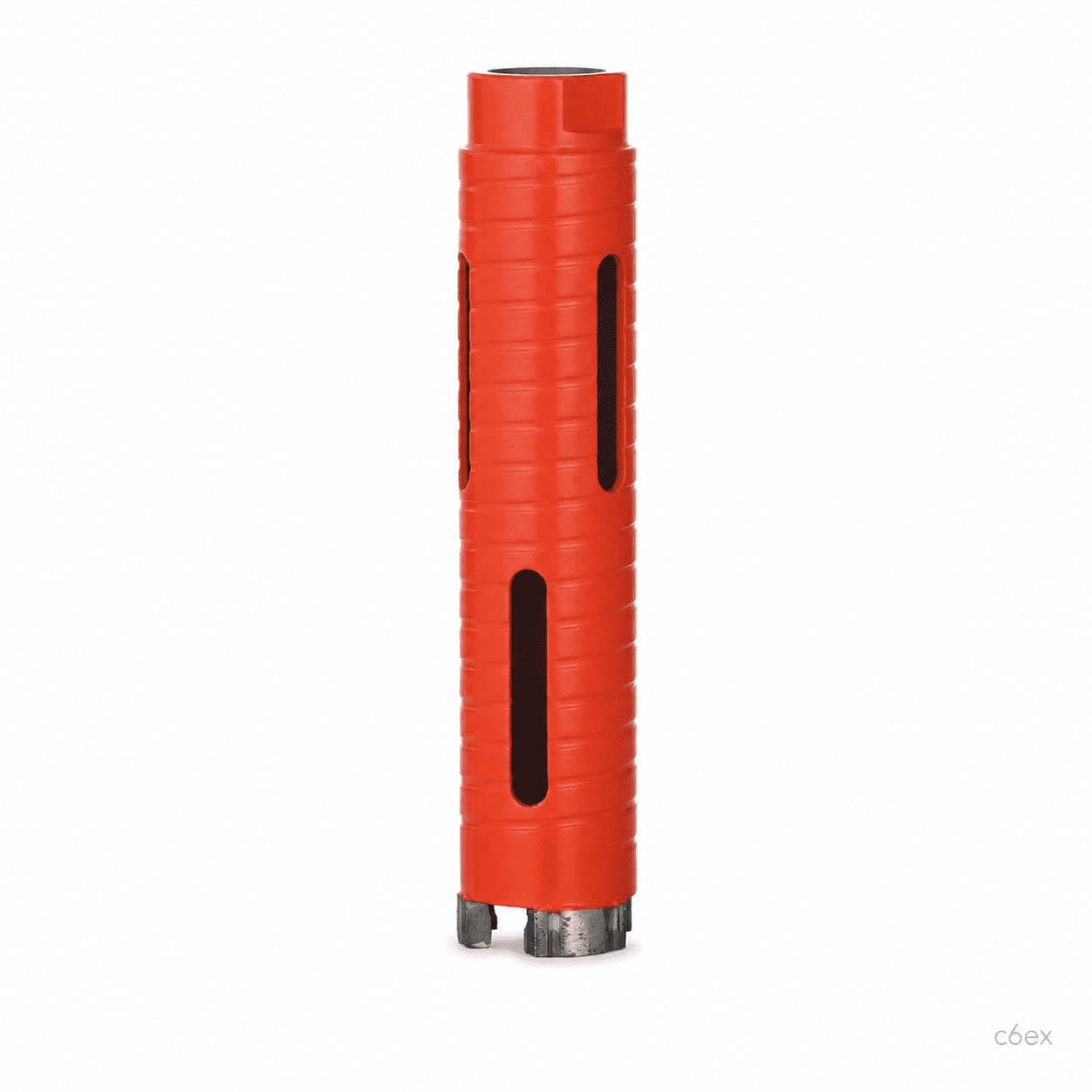

c6ex PRO Drill Bit for Core Bits - Dry Core Bits
PRO-grade solution. Tuned for Core Bits
- Material
- Diamond
- Bond
- ["Laser Welded"]
PRO-grade solution
Tuned for Core Bits
Multi-source domestic supply
Workpiece: Asphalt, Concrete, Reinforced concrete
Why this series
Key benefits
PRO-grade solution
PRO-grade solution
Tuned for Core Bits
Tuned for Core Bits
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Item No. | Diameter | Segment Height | Thread | Effective Length |
|---|---|---|---|---|---|
| C6EX-DR-GN-0455 | CDCD02015010 | 20mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0456 | CDCD02215010 | 22mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0457 | CDCD02515010 | 25mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0458 | CDCD02815010 | 28mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0459 | CDCD03015010 | 30mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0460 | CDCD03215010 | 32mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0461 | CDCD03615010 | 36mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0462 | CDCD03815010 | 38mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0463 | CDCD04015010 | 40mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0464 | CDCD04415010 | 44mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0465 | CDCD04615010 | 46mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0466 | CDCD05115010 | 51mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0467 | CDCD05615010 | 56mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0468 | CDCD06315010 | 63mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0469 | CDCD06615010 | 66mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0470 | CDCD07115010 | 71mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0471 | CDCD07615010 | 76mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0472 | CDCD08315010 | 83mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0473 | CDCD08915010 | 89mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0474 | CDCD10215010 | 102mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0475 | CDCD10815010 | 108mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0476 | CDCD11215010 | 112mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0477 | CDCD11615010 | 116mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0478 | CDCD12015010 | 120mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0479 | CDCD127515010 | 127mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0480 | CDCD13215010 | 132mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0481 | CDCD14015010 | 140mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0482 | CDCD15215010 | 152mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0483 | CDCD16215010 | 162mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0484 | CDCD16815010 | 168mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0485 | CDCD18015010 | 180mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0486 | CDCD20015010 | 200mm | 10mm | M14/M16 | 150mm |
| C6EX-DR-GN-0487 | CDCD25015010 | 250mm | 10mm | M14/M16 | 150mm |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond |
|---|---|
| Bond type | ["Laser Welded"] |
| Workpiece materials | Asphalt, Concrete, Reinforced concrete |
| Operations | Core Drilling |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex PRO Drill Bit for Core Bits - Dry Core Bits with your material, parameters, and volume. No price listing; each series is quoted to your application.
