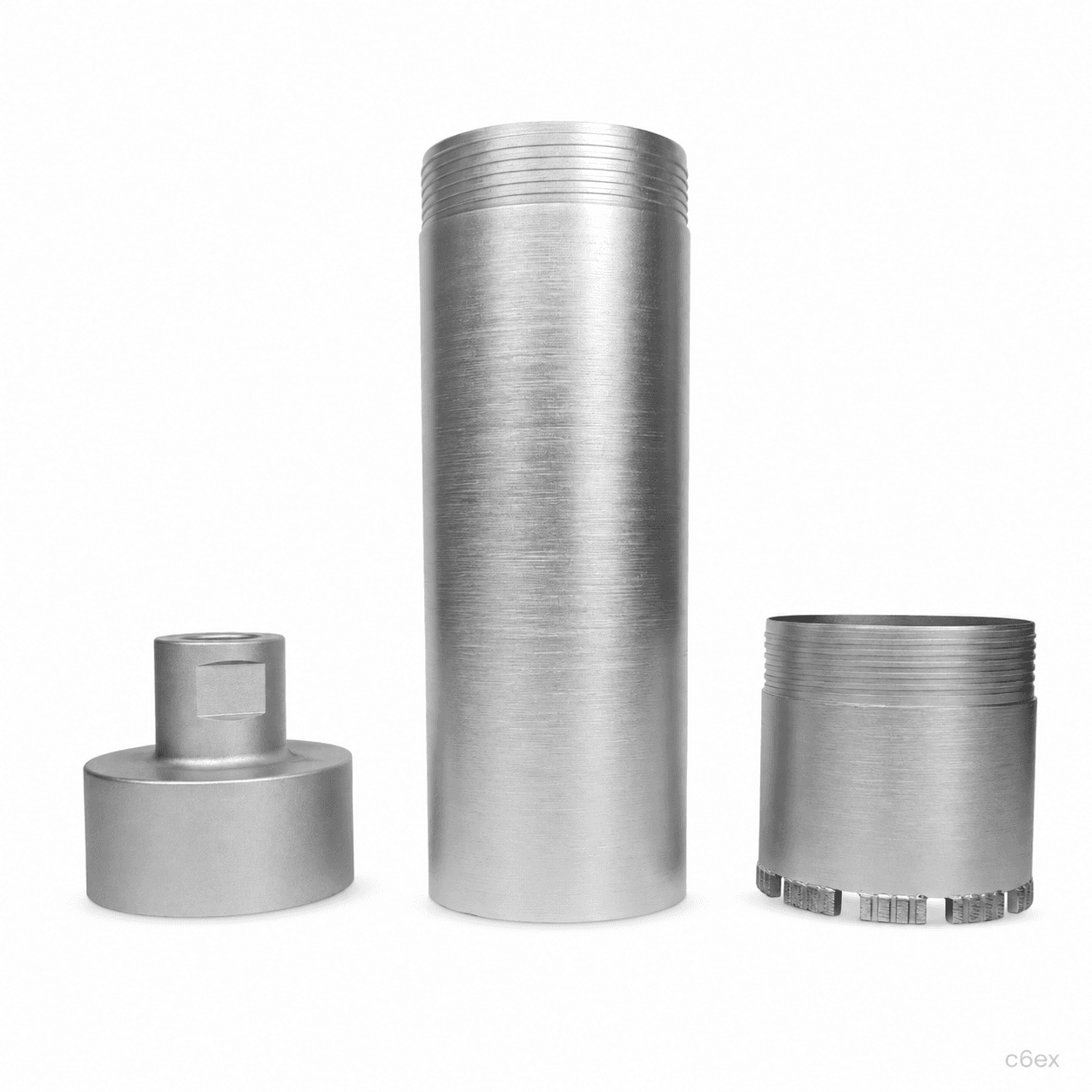

c6ex PRO Drill Bit for Core Bits - Three Parts Core Bits
PRO-grade solution. Tuned for Core Bits
- Material
- Diamond
- Bond
- ["Laser Welded"]
PRO-grade solution
Tuned for Core Bits
Multi-source domestic supply
Why this series
Key benefits
PRO-grade solution
PRO-grade solution
Tuned for Core Bits
Tuned for Core Bits
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Item No. | Diameter | Crown Bit Length | Steel Tube Length | Adapter Length | Total Length | Barrel Thickness |
|---|---|---|---|---|---|---|---|
| C6EX-DR-GN-0433 | CTCD02510 | 1" | 50mm | 300mm | 100mm | 420mm | 2.5mm |
| C6EX-DR-GN-0434 | CTCD03210 | 1-1/4" | 55mm | 300mm | 100mm | 420mm | 2.5mm |
| C6EX-DR-GN-0435 | CTCD03810 | 1-1/2" | 65mm | 300mm | 100mm | 420mm | 2.5mm |
| C6EX-DR-GN-0436 | CTCD05110 | 2" | 65mm | 300mm | 100mm | 420mm | 2.5mm |
| C6EX-DR-GN-0437 | CTCD06210 | 2-1/2" | 70mm | 300mm | 100mm | 420mm | 2.5mm |
| C6EX-DR-GN-0438 | CTCD07510 | 3" | 70mm | 300mm | 100mm | 420mm | 2.5mm |
| C6EX-DR-GN-0439 | CTCD08810 | 3-1/2" | 70mm | 300mm | 100mm | 420mm | 2.5mm |
| C6EX-DR-GN-0440 | CTCD10810 | 4" | 100mm | 300mm | 100mm | 450mm | 2.5mm |
| C6EX-DR-GN-0441 | CTCD12610 | 5" | 120mm | 300mm | 100mm | 450mm | 2.5mm |
| C6EX-DR-GN-0442 | CTCD15810 | 6" | 120mm | 300mm | 100mm | 450mm | 3.0mm |
| C6EX-DR-GN-0443 | CTCD17810 | 7" | 120mm | 300mm | 100mm | 450mm | 3.0mm |
| C6EX-DR-GN-0444 | CTCD20310 | 8" | 120mm | 300mm | 100mm | 450mm | 4.0mm |
| C6EX-DR-GN-0445 | CTCD22810 | 9" | 120mm | 300mm | 100mm | 450mm | 4.0mm |
| C6EX-DR-GN-0446 | CTCD25210 | 10" | 120mm | 300mm | 100mm | 450mm | 4.0mm |
| C6EX-DR-GN-0447 | CTCD30010 | 12" | 120mm | 300mm | 100mm | 450mm | 4.0mm |
| C6EX-DR-GN-0448 | CTCD35010 | 14" | 120mm | 300mm | 100mm | 450mm | 4.0mm |
| C6EX-DR-GN-0449 | CTCD40010 | 16" | 120mm | 300mm | 100mm | 450mm | 4.0mm |
| C6EX-DR-GN-0450 | CTCD45010 | 18" | 120mm | 300mm | 100mm | 450mm | 4.0mm |
| C6EX-DR-GN-0451 | CTCD50010 | 20" | 120mm | 300mm | 100mm | 450mm | 4.0mm |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond |
|---|---|
| Bond type | ["Laser Welded"] |
| Operations | Core Drilling |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex PRO Drill Bit for Core Bits - Three Parts Core Bits with your material, parameters, and volume. No price listing; each series is quoted to your application.
