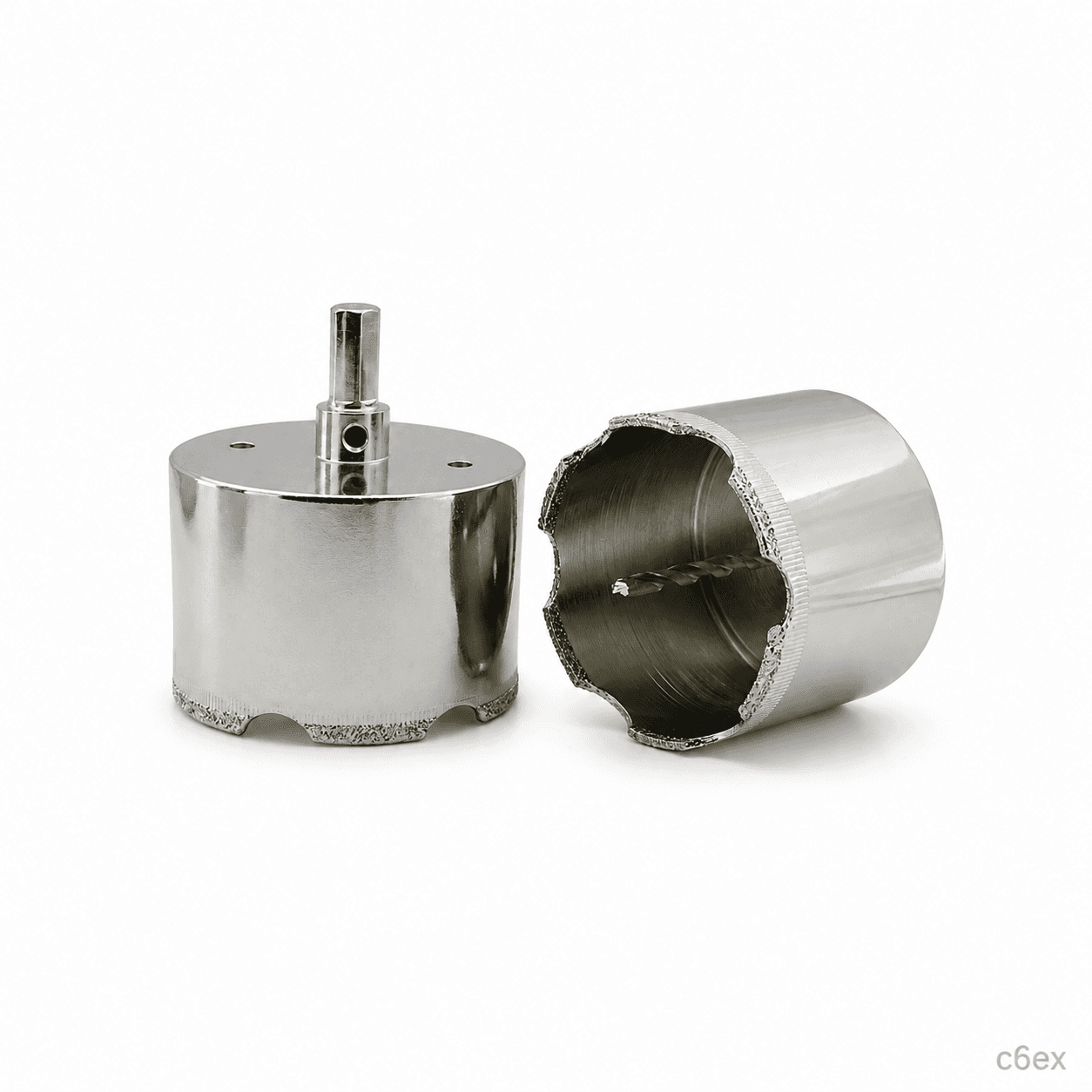

c6ex BASE Drill Bit for Core Bits - Electroplated Core Bits
BASE-grade solution. Tuned for Core Bits
- Material
- Diamond
- Bond
- ["Electroplated"]
BASE-grade solution
Tuned for Core Bits
Multi-source domestic supply
Workpiece: Ceramic, Glass, Granite, Marble
Why this series
Key benefits
BASE-grade solution
BASE-grade solution
Tuned for Core Bits
Tuned for Core Bits
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Item NO. | Diameter | Total length | Working length | Diamond width | Shank | Grit |
|---|---|---|---|---|---|---|---|
| C6EX-DR-GN-0417 | SECD22 | 22mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0418 | SECD25 | 25mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0419 | SECD28 | 28mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0420 | SECD30 | 30mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0421 | SECD32 | 32mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0422 | SECD35 | 35mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0423 | SECD38 | 38mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0424 | SECD40 | 40mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0425 | SECD43 | 43mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0426 | SECD45 | 45mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0427 | SECD50 | 50mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0428 | SECD55 | 55mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0429 | SECD60 | 60mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0430 | SECD65 | 65mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0431 | SECD70 | 70mm | 85mm | 60mm | 5mm | Round | #60/70 |
| C6EX-DR-GN-0432 | SECD75 | 75mm | 85mm | 60mm | 5mm | Round | #60/70 |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond |
|---|---|
| Bond type | ["Electroplated"] |
| Grit | ["#60/70"] |
| Workpiece materials | Ceramic, Glass, Granite, Marble |
| Operations | Core Drilling |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex BASE Drill Bit for Core Bits - Electroplated Core Bits with your material, parameters, and volume. No price listing; each series is quoted to your application.
