PRO · Drilling

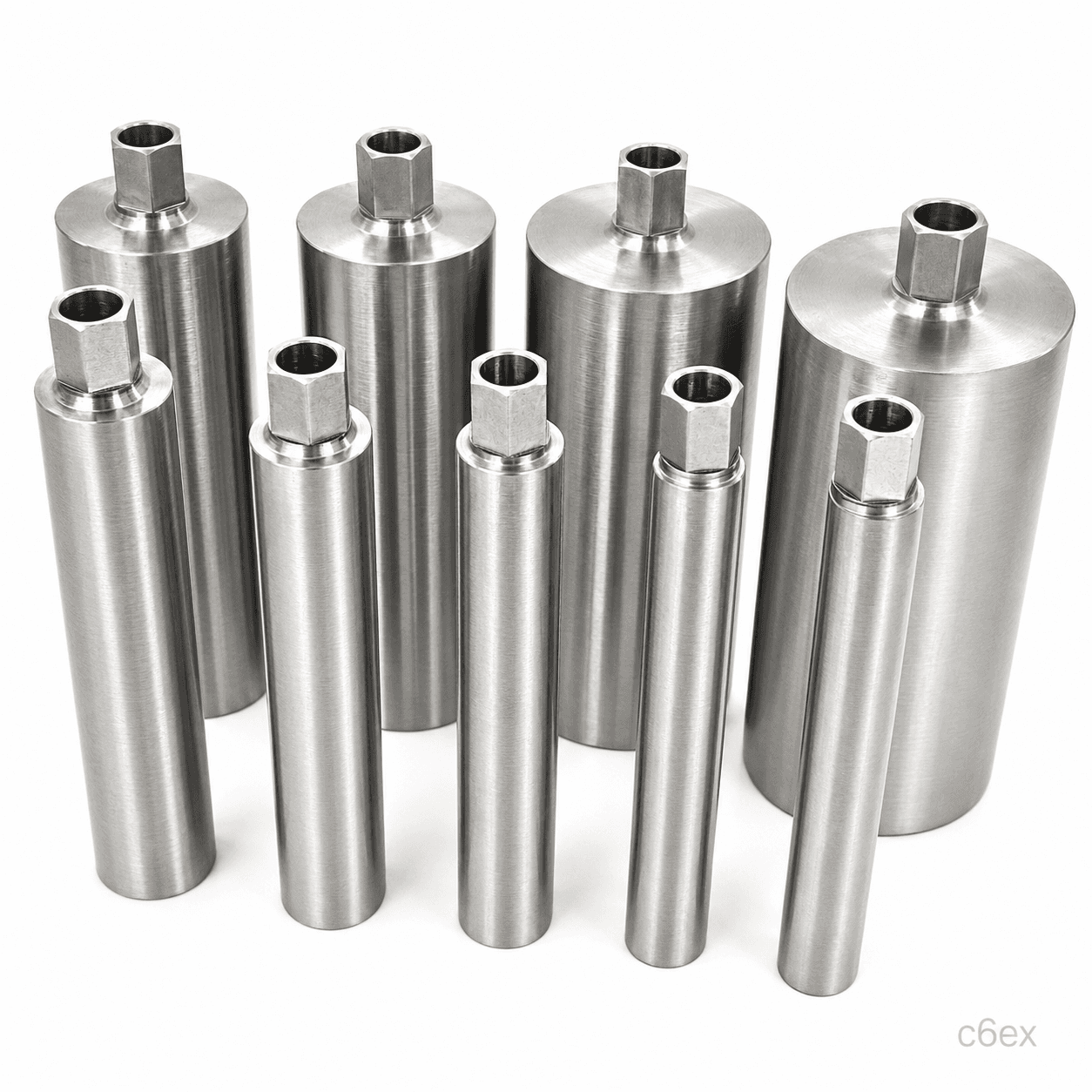

c6ex PRO Drill Bit for Core Bits - Core Drill Barrel
PRO-grade solution. Tuned for Core Bits
- Material
- Diamond
- Bond
- ["Laser Welded"]
PRO-grade solution
Tuned for Core Bits
Multi-source domestic supply
Workpiece: Concrete, Reinforced concrete
Why this series
Key benefits
PRO-grade solution
PRO-grade solution
Tuned for Core Bits
Tuned for Core Bits
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Item No. | Barrel diameter (mm) | Barrel Thickness (mm) | Effective Length | Adapter |
|---|---|---|---|---|---|
| C6EX-DR-GN-0301 | CCDB01015 | 10 | 1.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0302 | CCDB01215 | 12 | 1.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0303 | CCDB01415 | 14 | 1.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0304 | CCDB01615 | 16 | 1.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0305 | CCDB01815 | 18 | 1.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0306 | CCDB02015 | 20 | 1.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0307 | CCDB02220 | 22 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0308 | CCDB02420 | 24 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0309 | CCDB02520 | 25 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0310 | CCDB02620 | 26 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0311 | CCDB02820 | 28 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0312 | CCDB03020 | 30 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0313 | CCDB03220 | 32 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0314 | CCDB03420 | 34 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0315 | CCDB03520 | 35 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0316 | CCDB03620 | 36 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0317 | CCDB03720 | 37 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0318 | CCDB03820 | 38 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0319 | CCDB04020 | 40 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0320 | CCDB04520 | 45 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0321 | CCDB05020 | 50 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0322 | CCDB05520 | 55 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0323 | CCDB06020 | 60 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0324 | CCDB06520 | 65 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0325 | CCDB07020 | 70 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0326 | CCDB07520 | 75 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0327 | CCDB08020 | 80 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0328 | CCDB10020 | 100 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0329 | CCDB11220 | 112 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0330 | CCDB12020 | 120 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0331 | CCDB12520 | 125 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0332 | CCDB13020 | 130 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0333 | CCDB14020 | 140 | 2.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0334 | CCDB15025 | 150 | 2.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0335 | CCDB16025 | 160 | 2.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0336 | CCDB17025 | 170 | 2.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0337 | CCDB18025 | 180 | 2.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0338 | CCDB20025 | 200 | 2.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0339 | CCDB22325 | 223 | 2.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0340 | CCDB24825 | 248 | 2.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0341 | CCDB29825 | 298 | 2.5 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0342 | CCDB34830 | 348 | 3.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0343 | CCDB39830 | 398 | 3.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0344 | CCDB44830 | 448 | 3.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0345 | CCDB49830 | 498 | 3.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0346 | CCDB54830 | 548 | 3.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0347 | CCDB59830 | 598 | 3.0 | 450mm | 1 1/4"UNC |
| C6EX-DR-GN-0348 | CCDB64830 | 648 | 3.0 | 450mm | 1 1/4"UNC |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond |
|---|---|
| Bond type | ["Laser Welded"] |
| Workpiece materials | Concrete, Reinforced concrete |
| Operations | Core Drilling |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex PRO Drill Bit for Core Bits - Core Drill Barrel with your material, parameters, and volume. No price listing; each series is quoted to your application.
