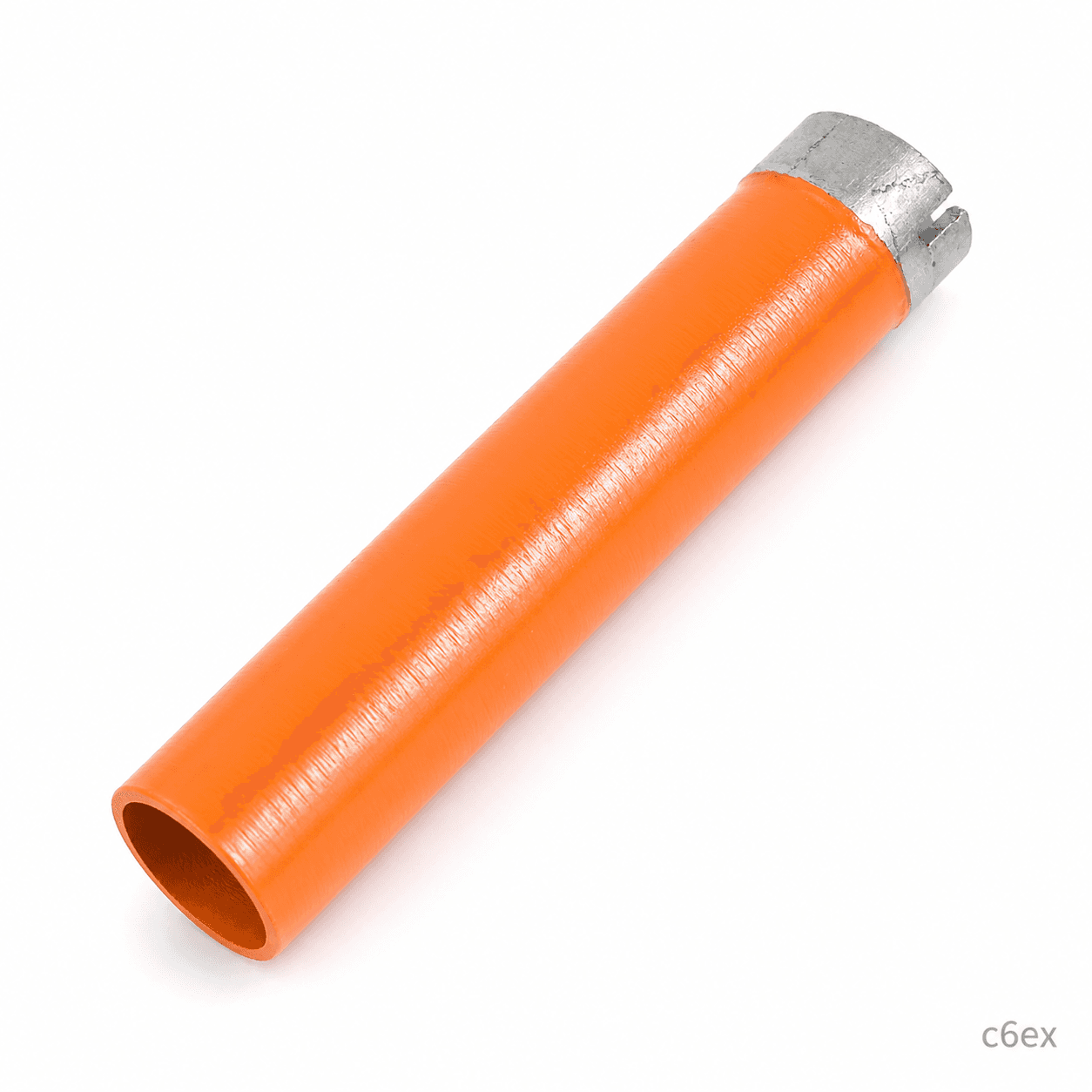

c6ex PRO Drill Bit for Core Bits - Wet Core Bits
PRO-grade solution. Tuned for Core Bits
- Material
- Diamond
- Bond
- ["Laser Welded"]
PRO-grade solution
Tuned for Core Bits
Multi-source domestic supply
Workpiece: Concrete, Masonry, Reinforced concrete
Why this series
Key benefits
PRO-grade solution
PRO-grade solution
Tuned for Core Bits
Tuned for Core Bits
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Diameter | Crown Segment | Effective Length | Thread |
|---|---|---|---|---|
| C6EX-DR-GN-0281 | 10mm | 12x2.0mm | 300/350mm | 1/2"BSP |
| C6EX-DR-GN-0282 | 12mm | 12x2.5mm | 300/350mm | 1/2"BSP |
| C6EX-DR-GN-0283 | 14mm | 12x2.5mm | 300/350mm | 1/2"BSP |
| C6EX-DR-GN-0284 | 15mm | 12x2.5mm | 300/350mm | 1/2"BSP |
| C6EX-DR-GN-0285 | 16mm | 12x2.5mm | 300/350mm | 1/2"BSP |
| C6EX-DR-GN-0286 | 18mm | 12x2.5mm | 300/350mm | 1/2"BSP |
| C6EX-DR-GN-0287 | 20mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0288 | 22mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0289 | 24mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0290 | 25mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0291 | 26mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0292 | 28mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0293 | 30mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0294 | 32mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0295 | 33mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0296 | 35mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0297 | 38mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0298 | 40mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0299 | 42mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
| C6EX-DR-GN-0300 | 45mm | 12x2.5mm | 350/400/450mm | 1/2"BSP; 1-1/4" UNC |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond |
|---|---|
| Bond type | ["Laser Welded"] |
| Workpiece materials | Concrete, Masonry, Reinforced concrete |
| Operations | Core Drilling |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex PRO Drill Bit for Core Bits - Wet Core Bits with your material, parameters, and volume. No price listing; each series is quoted to your application.
