Multi-tier · Drilling

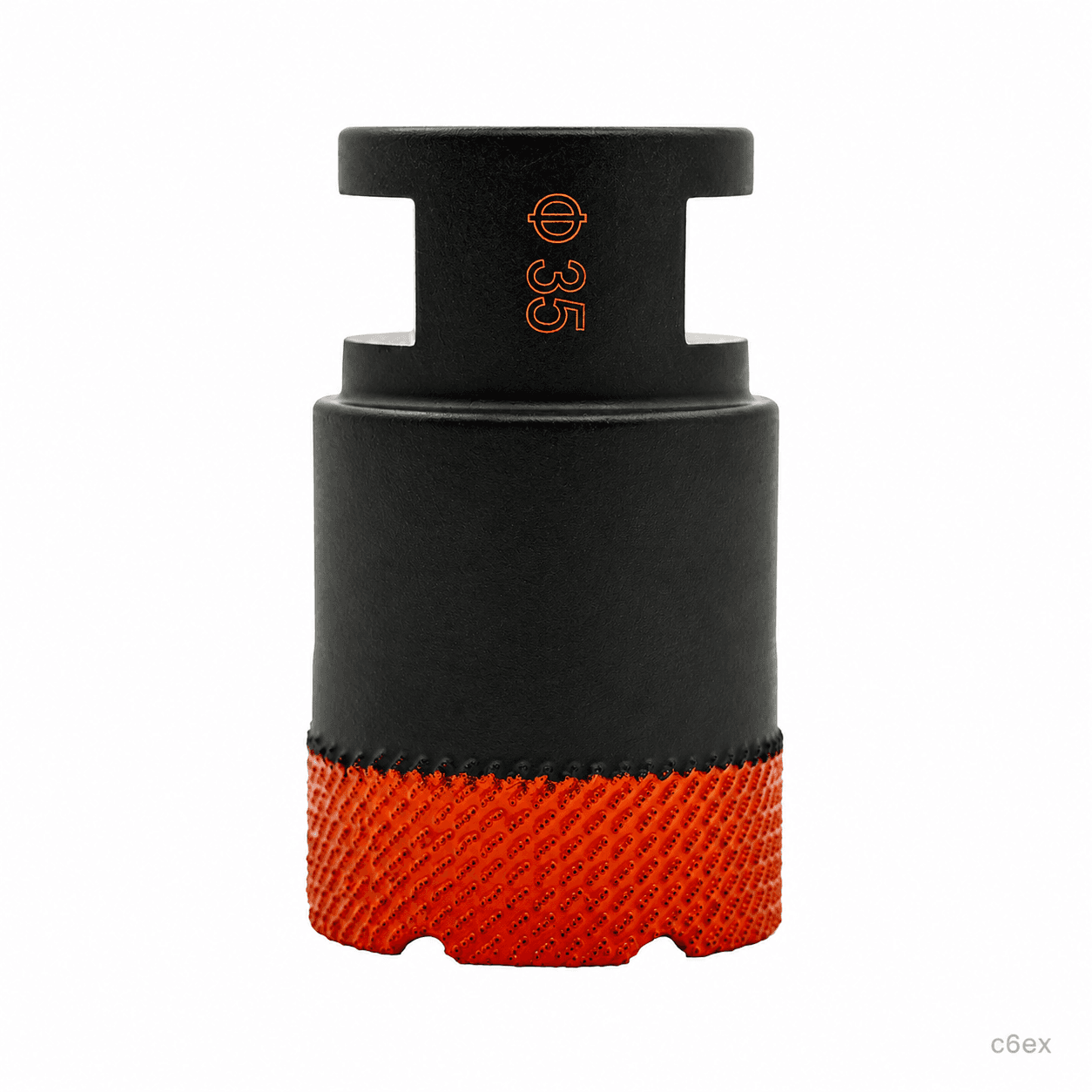

c6ex Drill Bit for Core Bits

PLUS-grade solution. Tuned for Core Bits

Request a QuoteTalk to an Engineer
c6ex Drill Bit for Core Bits
Material
Diamond
Bond
["Brazed","Laser Welded"]

PLUS-grade solution

Tuned for Core Bits

Multi-source domestic supply

Workpiece: Brick, Ceramic, Concrete, Glass, Granite, Marble, Masonry, Natural stone, Porcelain, Reinforced concrete, Tile

Why this series

Key benefits

PLUS-grade solution

PLUS-grade solution

Tuned for Core Bits

Tuned for Core Bits

Multi-source domestic supply

Multi-source domestic supply

SKU table

Series specifications

Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.

c6ex SKUTypeTierItem No.DiameterSegment HeightArborTotal Length
C6EX-DR-GN-0096Vacuum Brazed Core BitsPLUSSVCD0055mm10mmM1460mm
C6EX-DR-GN-0097Vacuum Brazed Core BitsPLUSSVCD0066mm10mmM1460mm
C6EX-DR-GN-0098Vacuum Brazed Core BitsPLUSSVCD0088mm10mmM1460mm
C6EX-DR-GN-0099Vacuum Brazed Core BitsPLUSSVCD01010mm10mmM1460mm
C6EX-DR-GN-0100Vacuum Brazed Core BitsPLUSSVCD01212mm10mmM1460mm
C6EX-DR-GN-0101Vacuum Brazed Core BitsPLUSSVCD01414mm10mmM1460mm
C6EX-DR-GN-0102Vacuum Brazed Core BitsPLUSSVCD01616mm10mmM1460mm
C6EX-DR-GN-0103Vacuum Brazed Core BitsPLUSSVCD02020mm15mmM1460mm
C6EX-DR-GN-0104Vacuum Brazed Core BitsPLUSSVCD02525mm15mmM1475mm
C6EX-DR-GN-0105Vacuum Brazed Core BitsPLUSSVCD02828mm15mmM1475mm
C6EX-DR-GN-0106Vacuum Brazed Core BitsPLUSSVCD03030mm15mmM1475mm
C6EX-DR-GN-0107Vacuum Brazed Core BitsPLUSSVCD03535mm15mmM1475mm
C6EX-DR-GN-0108Vacuum Brazed Core BitsPLUSSVCD04040mm15mmM1475mm
C6EX-DR-GN-0109Vacuum Brazed Core BitsPLUSSVCD04545mm15mmM1475mm
C6EX-DR-GN-0110Vacuum Brazed Core BitsPLUSSVCD05050mm15mmM1475mm
C6EX-DR-GN-0111Vacuum Brazed Core BitsPLUSSVCD05555mm15mmM1475mm
C6EX-DR-GN-0112Vacuum Brazed Core BitsPLUSSVCD06060mm15mmM1475mm
C6EX-DR-GN-0113Vacuum Brazed Core BitsPLUSSVCD06565mm15mmM1475mm
C6EX-DR-GN-0114Vacuum Brazed Core BitsPLUSSVCD07070mm15mmM1475mm
C6EX-DR-GN-0115Vacuum Brazed Core BitsPLUSSVCD07575mm15mmM1475mm
C6EX-DR-GN-0116Vacuum Brazed Core BitsPLUSSVCD08080mm15mmM1475mm
C6EX-DR-GN-0117Vacuum Brazed Core BitsPLUSSVCD09090mm15mmM1475mm
C6EX-DR-GN-0118Vacuum Brazed Core BitsPLUSSVCD100100mm15mmM1475mm
C6EX-DR-GN-0119Vacuum Brazed Core BitsPLUSSVCD02020mm3/5mm5/8"-11 / M1480mm
C6EX-DR-GN-0120Vacuum Brazed Core BitsPLUSSVCD03232mm3/5mm5/8"-11 / M1480mm
C6EX-DR-GN-0121Vacuum Brazed Core BitsPLUSSVCD03838mm3/5mm5/8"-11 / M1480mm
C6EX-DR-GN-0122Vacuum Brazed Core BitsPLUSSVCD04242mm3/5mm5/8"-11 / M1480mm
C6EX-DR-GN-0123Vacuum Brazed Core BitsPLUSSVCD05252mm3/5mm5/8"-11 / M1480mm
C6EX-DR-GN-0124Vacuum Brazed Core BitsPLUSSVCD06868mm3/5mm5/8"-11 / M1480mm
C6EX-DR-GN-0125Vacuum Brazed Core BitsPLUSSVCD08585mm3/5mm5/8"-11 / M1480mm
C6EX-DR-GN-0126Vacuum Brazed Core BitsPLUSSVCD102102mm3/5mm5/8"-11 / M1480mm
C6EX-DR-GN-0127Hole Saw BitsPROSDCD0321501032mm10M16150mm
C6EX-DR-GN-0128Hole Saw BitsPROSDCD0381501038mm10M16150mm
C6EX-DR-GN-0129Hole Saw BitsPROSDCD0421501042mm10M16150mm
C6EX-DR-GN-0130Hole Saw BitsPROSDCD0521501052mm10M16150mm
C6EX-DR-GN-0131Hole Saw BitsPROSDCD0681501068mm10M16150mm
C6EX-DR-GN-0132Hole Saw BitsPROSDCD0851501085mm10M16150mm
C6EX-DR-GN-0133Hole Saw BitsPROSDCD10215010102mm10M16150mm
C6EX-DR-GN-0134Hole Saw BitsPROSDCD10815010108mm10M16150mm
C6EX-DR-GN-0135Hole Saw BitsPROSDCD11215010112mm10M16150mm
C6EX-DR-GN-0136Hole Saw BitsPROSDCD12715010127mm10M16150mm
C6EX-DR-GN-0137Hole Saw BitsPROSDCD15215010152mm10M16150mm
C6EX-DR-GN-0138Hole Saw BitsPROSDCD16215010162mm10M16150mm

Series specs

Specification snapshot

Material, bond, and process fit for selection and sampling.

MaterialDiamond
Bond type["Brazed","Laser Welded"]
Workpiece materialsBrick, Ceramic, Concrete, Glass, Granite, Marble, Masonry, Natural stone, Porcelain, Reinforced concrete, Tile
OperationsCore Drilling, Sawing

Application fit

Primary application

The primary application this series is engineered for.

Application

Core Bits

Quote context

Send your workpiece, machine, and cycle target — we engineer the tool.

Route an inquiry for c6ex Drill Bit for Core Bits with your material, parameters, and volume. No price listing; each series is quoted to your application.
