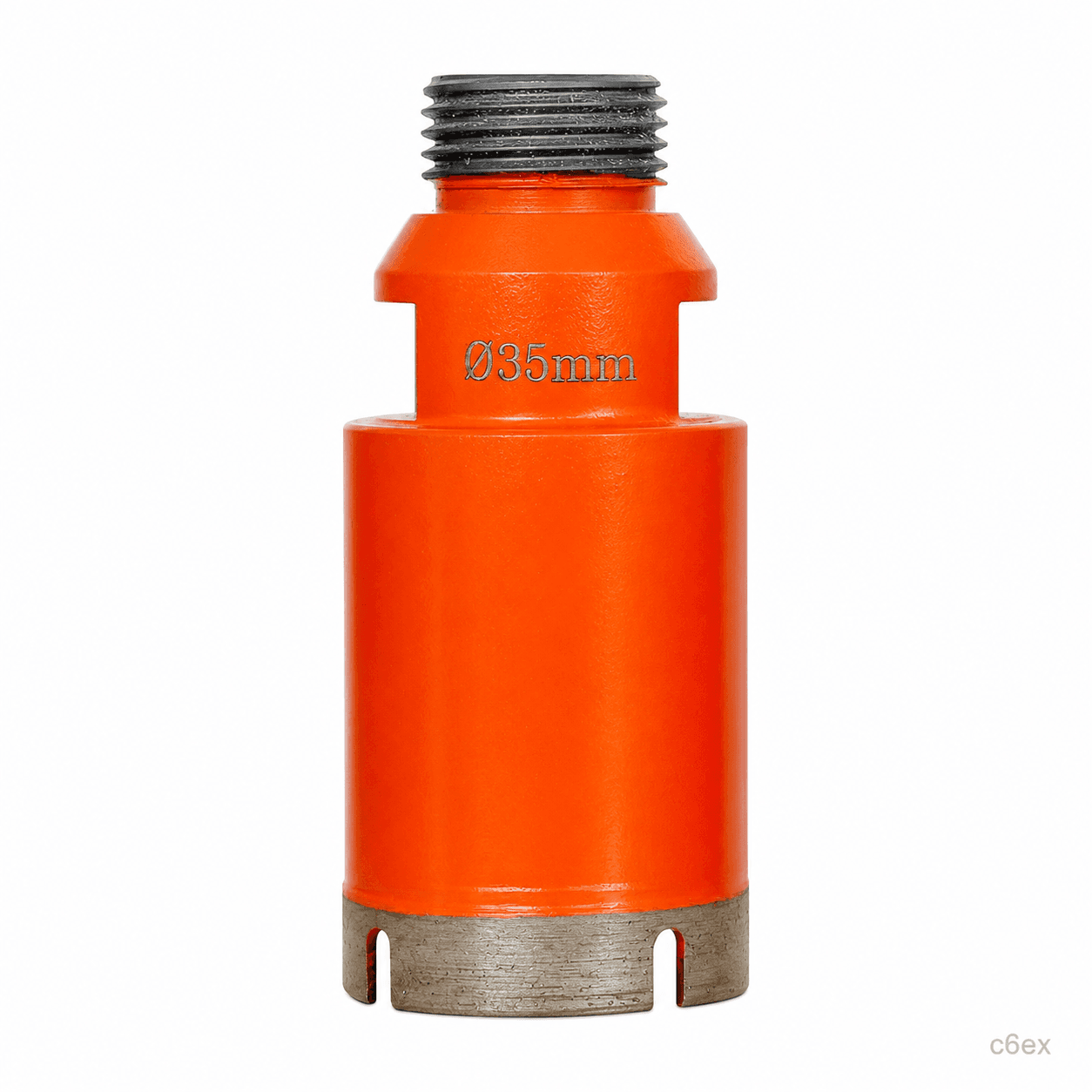

c6ex PRO Drill Bit for Core Bits - Hole Saw Bits
PRO-grade solution. Tuned for Core Bits
- Material
- Diamond
- Bond
- ["Silver Brazed","Sintered"]
PRO-grade solution
Tuned for Core Bits
Multi-source domestic supply
Why this series
Key benefits
PRO-grade solution
PRO-grade solution
Tuned for Core Bits
Tuned for Core Bits
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Item No. | Diameter | Segment Height | Segment thickness | Thread |
|---|---|---|---|---|---|
| C6EX-DR-GN-0038 | SDCD006 | 6mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0039 | SDCD008 | 8mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0040 | SDCD010 | 10mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0041 | SDCD012 | 12mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0042 | SDCD014 | 14mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0043 | SDCD016 | 16mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0044 | SDCD018 | 18mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0045 | SDCD020 | 20mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0046 | SDCD025 | 25mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0047 | SDCD028 | 28mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0048 | SDCD030 | 30mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0049 | SDCD035 | 35mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0050 | SDCD040 | 40mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0051 | SDCD045 | 45mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0052 | SDCD050 | 50mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0053 | SDCD055 | 55mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0054 | SDCD060 | 60mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0055 | SDCD065 | 65mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0056 | SDCD070 | 70mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0057 | SDCD075 | 75mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0058 | SDCD080 | 80mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0059 | SDCD090 | 90mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0060 | SDCD100 | 100mm | 10mm | 1.2mm | M14 |
| C6EX-DR-GN-0061 | SDCD120 | 120mm | 10mm | 1.2mm | M14 |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond |
|---|---|
| Bond type | ["Silver Brazed","Sintered"] |
| Operations | Sawing |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex PRO Drill Bit for Core Bits - Hole Saw Bits with your material, parameters, and volume. No price listing; each series is quoted to your application.
