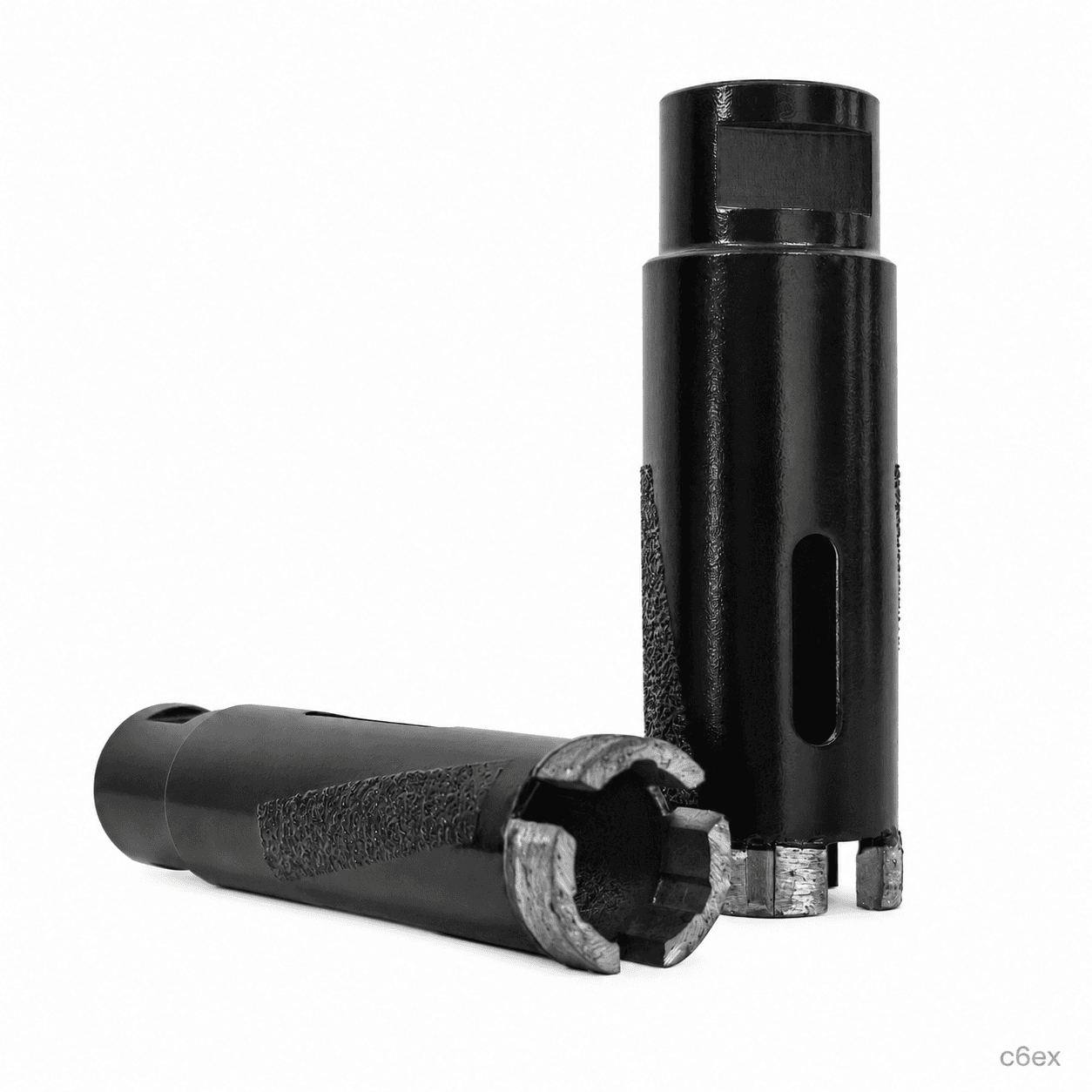

c6ex PRO Drill Bit for Core Bits - Hole Saw Bits
PRO-grade solution. Tuned for Core Bits
- Material
- Diamond
- Bond
- ["Laser Welded"]
PRO-grade solution
Tuned for Core Bits
Multi-source domestic supply
Workpiece: Granite, Marble
Why this series
Key benefits
PRO-grade solution
PRO-grade solution
Tuned for Core Bits
Tuned for Core Bits
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Item No. | Diameter | Segment Size | Segment No. | Tube Thickness | Thread |
|---|---|---|---|---|---|---|
| C6EX-DR-GN-0022 | SHCD020 | 3/4" | 20mm | 17.5x3.2x9mm | 3 | 1.75mm |
| C6EX-DR-GN-0023 | SHCD022 | 7/8" | 22mm | 17.5x3.2x9mm | 3 | 1.75mm |
| C6EX-DR-GN-0024 | SHCD025 | 1" | 25mm | 17.5x3.2x9mm | 3 | 1.75mm |
| C6EX-DR-GN-0025 | SHCD030 | 1-1/8" | 30mm | 18.5x3.2x9mm | 3 | 1.75mm |
| C6EX-DR-GN-0026 | SHCD032 | 1-1/4" | 32mm | 15x3.2x9mm | 4 | 1.75mm |
| C6EX-DR-GN-0027 | SHCD035 | 1-3/8" | 35mm | 17x3.2x9mm | 4 | 1.75mm |
| C6EX-DR-GN-0028 | SHCD038 | 1-1/2" | 38mm | 19x3.2x9mm | 4 | 1.75mm |
| C6EX-DR-GN-0029 | SHCD040 | 1-5/8" | 40mm | 17x3.2x9mm | 5 | 1.75mm |
| C6EX-DR-GN-0030 | SHCD044 | 1-3/4" | 44mm | 18x3.2x9mm | 5 | 1.75mm |
| C6EX-DR-GN-0031 | SHCD051 | 2" | 51mm | 20x3.2x9mm | 5 | 1.75mm |
| C6EX-DR-GN-0032 | SHCD056 | 2-1/4" | 56mm | 19x3.2x9mm | 6 | 1.75mm |
| C6EX-DR-GN-0033 | SHCD063 | 2-1/2" | 63mm | 18x3.2x9mm | 7 | 1.75mm |
| C6EX-DR-GN-0034 | SHCD076 | 3" | 76mm | 17x3.2x9mm | 9 | 1.75mm |
| C6EX-DR-GN-0035 | SHCD083 | 3-1/4" | 83mm | 19x3.2x9mm | 9 | 1.75mm |
| C6EX-DR-GN-0036 | SHCD089 | 3-1/2" | 89mm | 19x3.2x9mm | 10 | 1.75mm |
| C6EX-DR-GN-0037 | SHCD102 | 4" | 102mm | 20x3.2x9mm | 11 | 1.75mm |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond |
|---|---|
| Bond type | ["Laser Welded"] |
| Workpiece materials | Granite, Marble |
| Operations | Sawing |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex PRO Drill Bit for Core Bits - Hole Saw Bits with your material, parameters, and volume. No price listing; each series is quoted to your application.
