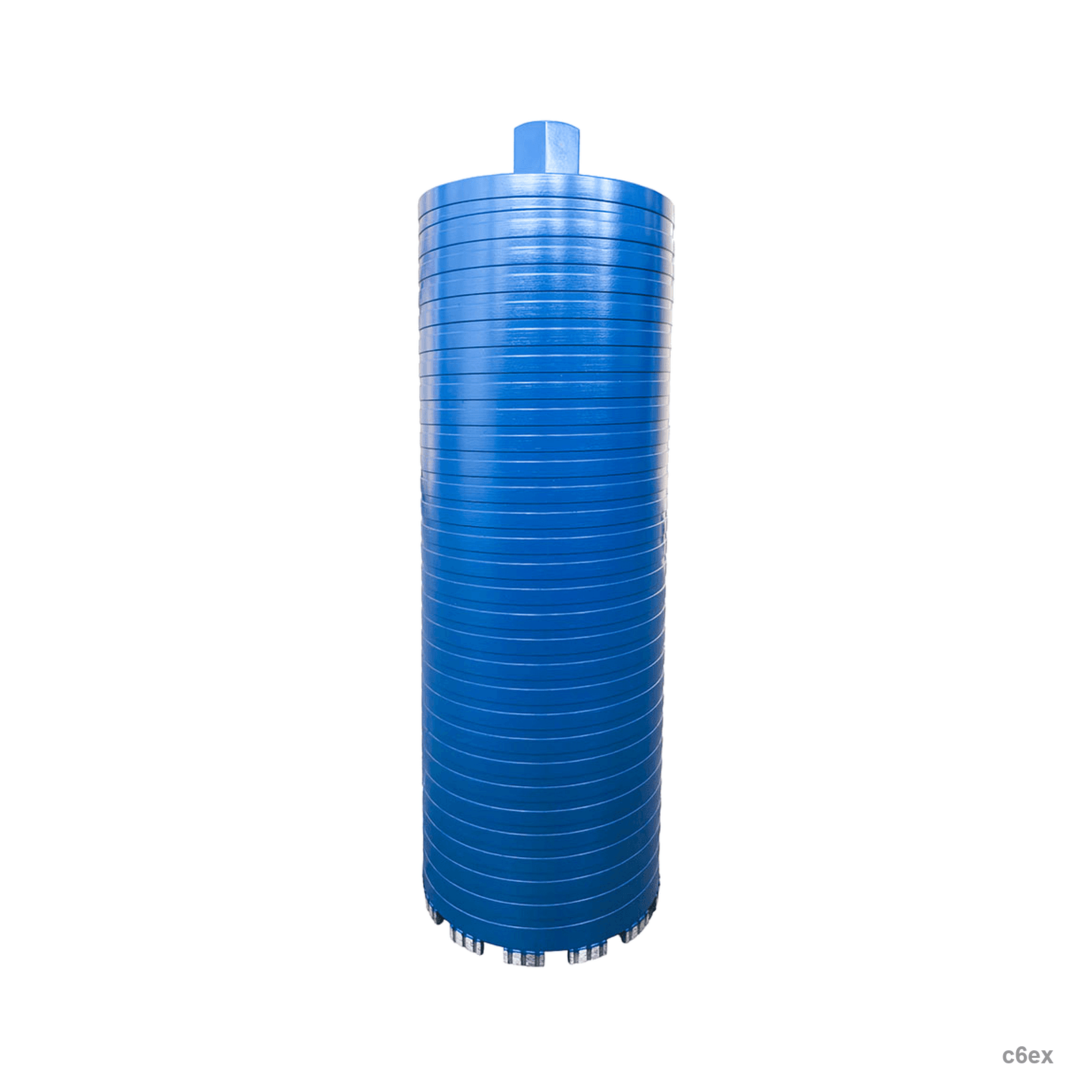

c6ex PRO Drill Bit for Core Bits - Dry Core Bits
PRO-grade solution. Tuned for Core Bits
- Material
- Diamond
- Bond
- ["Laser Welded"]
PRO-grade solution
Tuned for Core Bits
Multi-source domestic supply
Workpiece: Brick, Concrete, Hard building materials, Masonry, Reinforced concrete
Why this series
Key benefits
PRO-grade solution
PRO-grade solution
Tuned for Core Bits
Tuned for Core Bits
Multi-source domestic supply
Multi-source domestic supply
SKU table
Series specifications
Orderable SKUs with key geometry and dimensions. Send the SKU(s) you need for a quote.
| c6ex SKU | Item No. | Diameter | Segment Size | Segment Number | Thread | Working Length |
|---|---|---|---|---|---|---|
| C6EX-DR-GN-0001 | CDCT025 | 25mm | Crown | 1 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0002 | CDCT032 | 32mm | 16x10x3.5mm | 3 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0003 | CDCT042 | 42mm | 20x10x3.5mm | 3 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0004 | CDCT052 | 52mm | 24x12x3.5mm | 4 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0005 | CDCT062 | 62mm | 24x10x3.5mm | 5 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0006 | CDCT067 | 67mm | 24x10x3.5mm | 6 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0007 | CDCT076 | 76mm | 24x10x3.5mm | 6 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0008 | CDCT082 | 82mm | 24x10x3.5mm | 7 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0009 | CDCT092 | 92mm | 24x10x3.5mm | 8 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0010 | CDCT102 | 102mm | 24x10x3.5mm | 9 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0011 | CDCT112 | 112mm | 24x10x3.5mm | 9 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0012 | CDCT122 | 122mm | 24x10x3.5mm | 10 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0013 | CDCT127 | 127mm | 24x10x3.5mm | 11 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0014 | CDCT132 | 132mm | 24x10x3.5mm | 11 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0015 | CDCT142 | 142mm | 24x10x3.5mm | 12 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0016 | CDCT152 | 152mm | 24x10x4.0mm | 12 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0017 | CDCT162 | 162mm | 24x10x4.0mm | 13 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0018 | CDCT182 | 182mm | 24x10x4.0mm | 13 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0019 | CDCT202 | 202mm | 24x10x4.0mm | 15 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0020 | CDCT225 | 225mm | 24x10x4.0mm | 16 | 1-1/4" UNC | 450/300mm |
| C6EX-DR-GN-0021 | CDCT250 | 250mm | 24x10x4.0mm | 17 | 1-1/4" UNC | 450/300mm |
Series specs
Specification snapshot
Material, bond, and process fit for selection and sampling.
| Material | Diamond |
|---|---|
| Bond type | ["Laser Welded"] |
| Workpiece materials | Brick, Concrete, Hard building materials, Masonry, Reinforced concrete |
| Operations | Core Drilling |
Application fit
Primary application
The primary application this series is engineered for.
Quote context
Send your workpiece, machine, and cycle target — we engineer the tool.
Route an inquiry for c6ex PRO Drill Bit for Core Bits - Dry Core Bits with your material, parameters, and volume. No price listing; each series is quoted to your application.
